For model M153GW (153GW), Mende - Radio H. Mende & Co. GmbH, Dresden:
Bild ebay

Country:  Germany
Manufacturer / Brand:  Mende - Radio H. Mende & Co. GmbH, Dresden
Brand

System Günther
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: CF3 CF7 CL4 CY1 EUVI or EUVII or EUXX
Main principle TRF with regeneration; 1 Special; 1 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: M153GW - Mende - Radio H. Mende & Co.
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 540 x 285 x 265 mm / 21.3 x 11.2 x 10.4 inch
Notes

Mendelithgehäuse.

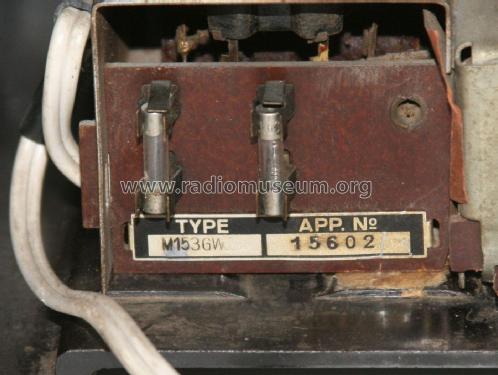

Das Typschild des Empfängers zeigt M153GW, dagegen führen die Service-Unterlagen die Typbezeichnung 153GW. Es handelt sich dabei um dasselbe Modell.

Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Price in first year of sale 176.00 RM
Source of data Handbuch WDRG 1939 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
