MS205-W (205W)

MS205-W ; Mende - Radio H. (ID = 1441245) Radio

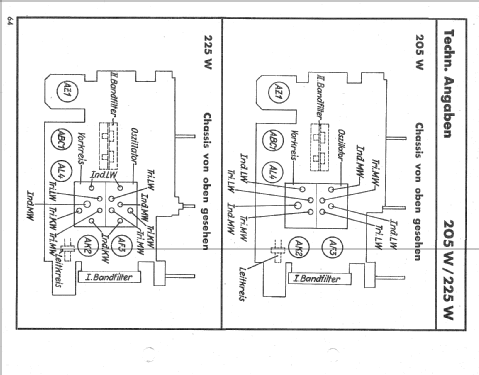

MS205-W ; Mende - Radio H. (ID = 1441248) Radio

MS205-W ; Mende - Radio H. (ID = 4870) Radio

MS205-W ; Mende - Radio H. (ID = 1441246) Radio

MS205-W ; Mende - Radio H. (ID = 350278) Radio

MS205-W ; Mende - Radio H. (ID = 1440770) Radio

MS205-W ; Mende - Radio H. (ID = 1440775) Radio

MS205-W ; Mende - Radio H. (ID = 1440776) Radio

MS205-W ; Mende - Radio H. (ID = 1440777) Radio

MS205-W ; Mende - Radio H. (ID = 1440778) Radio
MS205-W ; Mende - Radio H. (ID = 2093255) Radio MS205-W ; Mende - Radio H. (ID = 2034717) Radio
MS205-W ; Mende - Radio H. (ID = 2034718) Radio MS205-W ; Mende - Radio H. (ID = 2034722) Radio

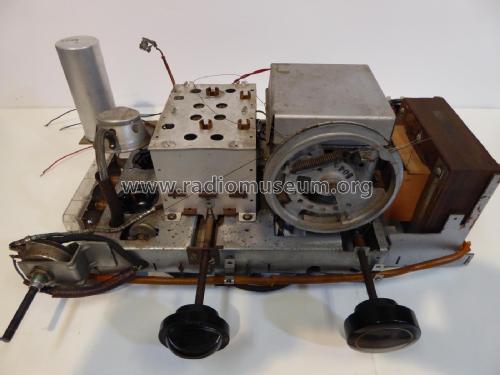

MS205-W ; Mende - Radio H. (ID = 2034724) Radio MS205-W ; Mende - Radio H. (ID = 2034719) Radio
MS205-W ; Mende - Radio H. (ID = 2034720) Radio MS205-W ; Mende - Radio H. (ID = 2034721) Radio
MS205-W ; Mende - Radio H. (ID = 2034723) Radio MS205-W ; Mende - Radio H. (ID = 3331) Radio
Use red slider bar for more.
MS205-W ; Mende - Radio H. (ID = 2093255) Radio
Mende - Radio H.: MS205-W [Radio] ID = 2093255 1350x779
Select picture or schematic to display from thumbnails on the right and click for download.
For model MS205-W (205W), Mende - Radio H. Mende & Co. GmbH, Dresden

Country:  Germany
Manufacturer / Brand:  Mende - Radio H. Mende & Co. GmbH, Dresden
Brand

System Günther
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: AK2 AF3 ABC1 AL4 AZ1

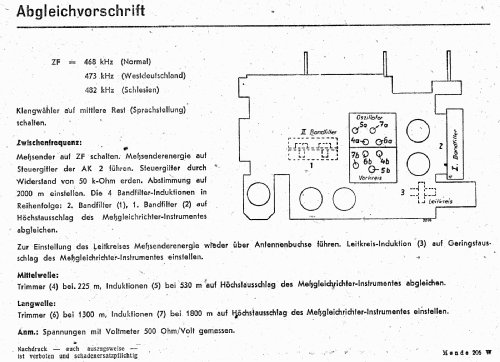

Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: MS205-W - Mende - Radio H. Mende & Co.

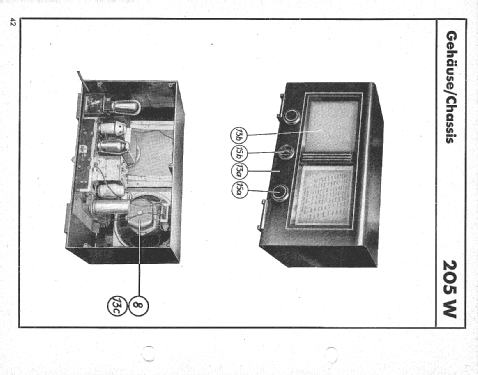

Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 540 x 310 x 270 mm / 21.3 x 12.2 x 10.6 inch
Notes Das Typschild des Empfängers zeigt MS205W, dagegen führen die Service-Unterlagen die Typbezeichnung 205W. Es handelt sich dabei um dasselbe Modell.
Net weight (2.2 lb = 1 kg) 13 kg / 28 lb 10.1 oz (28.634 lb)
Price in first year of sale 205.00 RM
Source of data Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb

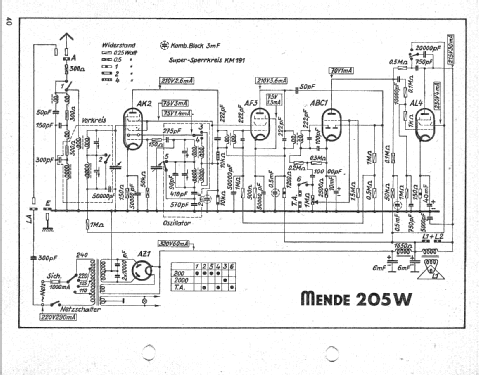

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Mende - Radio H. Mende & Co. GmbH, Dresden
