Super MS216-W (216W)

Super MS216-W ; Mende - Radio H. (ID = 204835) Radio

Super MS216-W ; Mende - Radio H. (ID = 204821) Radio

Super MS216-W ; Mende - Radio H. (ID = 205632) Radio

Super MS216-W ; Mende - Radio H. (ID = 205630) Radio

Super MS216-W ; Mende - Radio H. (ID = 205621) Radio

Super MS216-W ; Mende - Radio H. (ID = 205622) Radio

Super MS216-W ; Mende - Radio H. (ID = 205623) Radio

Super MS216-W ; Mende - Radio H. (ID = 205624) Radio

Super MS216-W ; Mende - Radio H. (ID = 205626) Radio

Super MS216-W ; Mende - Radio H. (ID = 205627) Radio
Super MS216-W ; Mende - Radio H. (ID = 1765375) Radio Super MS216-W ; Mende - Radio H. (ID = 2372579) Radio
Super MS216-W ; Mende - Radio H. (ID = 2372578) Radio Super MS216-W ; Mende - Radio H. (ID = 2372580) Radio
Super MS216-W ; Mende - Radio H. (ID = 2372581) Radio Super MS216-W ; Mende - Radio H. (ID = 2372582) Radio
Super MS216-W ; Mende - Radio H. (ID = 3319) Radio Super MS216-W ; Mende - Radio H. (ID = 45449) Radio
Super MS216-W ; Mende - Radio H. (ID = 182465) Radio Super MS216-W ; Mende - Radio H. (ID = 15870) Radio
Use red slider bar for more.
Super MS216-W ; Mende - Radio H. (ID = 1765375) Radio

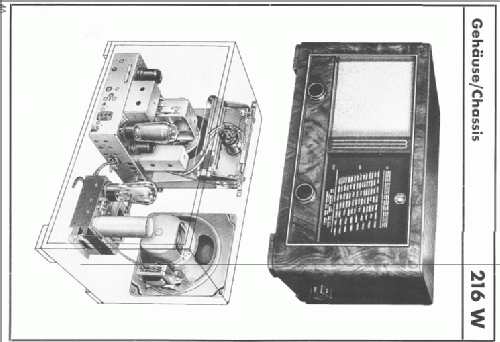

Mende - Radio H.: Super MS216-W [Radio] ID = 1765375 1400x883
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super MS216-W (216W), Mende - Radio H. Mende & Co. GmbH, Dresden

Country:  Germany
Manufacturer / Brand:  Mende - Radio H. Mende & Co. GmbH, Dresden
Brand

System Günther
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH11 EBF11 EL11 AZ11 EFM11
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Super MS216-W - Mende - Radio H. Mende & Co.
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 565 x 320 x 260 mm / 22.2 x 12.6 x 10.2 inch
Notes Das Typschild des Empfängers zeigt MS216W, dagegen führen die Service-Unterlagen die Typbezeichnung 216W.
Es handelt sich dabei um dasselbe Modell.
Net weight (2.2 lb = 1 kg) 13 kg / 28 lb 10.1 oz (28.634 lb)
Price in first year of sale 216.00 RM
Source of data Handbuch WDRG 1939 / Radiokatalog Band 1, Ernst Erb

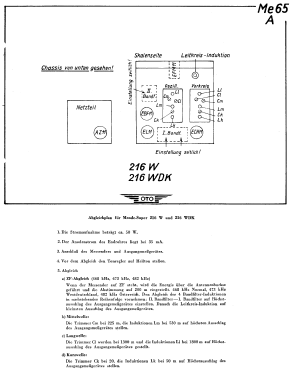

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Literature/Schematics (1) -- Original-techn. papers.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
