306WF
Use red slider bar for more.

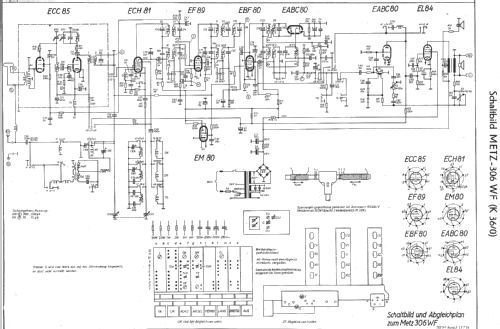

Metz Transformatoren: 306WF [Radio] ID = 2295563 1400x917
Select picture or schematic to display from thumbnails on the right and click for download.
|
|

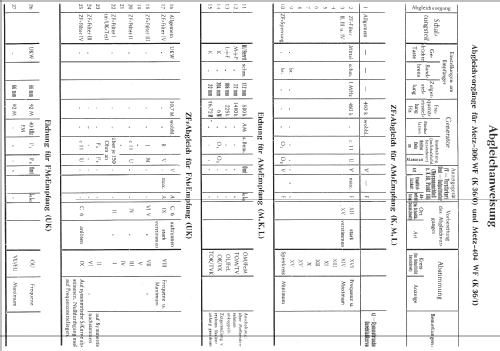

||||
| Year: 1954/1955 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 7: ECC85 ECH81 EF89 EBF80 EM80 EABC80 EL84 | ||||
|---|---|---|---|---|---|
| Semiconductors (the count is only for transistors) | B250C90 |
| Main principle | Superheterodyne (common); ZF/IF 460/10700 kHz |
|---|---|
| Tuned circuits | 9 AM circuit(s) 12 FM circuit(s) |
| Wave bands | Broadcast, Long Wave, Short Wave plus FM or UHF. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 125; 220; 240 Volt |
| Loudspeaker | 2 Loudspeakers |
| Power out | 6 W (unknown quality) |
| from Radiomuseum.org | Model: 306WF - Metz Transformatoren- und |
| Material | Wooden case |
| Shape | Tablemodel with Push Buttons. |
| Dimensions (WHD) | 580 x 370 x 280 mm / 22.8 x 14.6 x 11 inch |
| Notes | Es existiert nur eine Ausführung des Metz 306WF. Im Katalog des Rundfunk- und Fernseh-Großhandels 1954/55 wird das Modell als Metz 306 geführt, die Servicedokumentation zeigt dagegen 306WF. Drehbare Ferritantenne. |
| Net weight (2.2 lb = 1 kg) | 11.3 kg / 24 lb 14.2 oz (24.89 lb) |
| Price in first year of sale | 339.00 DM |
| External source of data | Erb |
| Source of data | Rundfunk- und Fernseh-Katalog 1954/55 |
| Mentioned in | Rundfunk-Phono-Fernseh-Katalog 1954/55 S.34 (Thiele) |
| Literature/Schematics (1) | HdB d.Rdf-& Ferns-GrH 1954/55 (S.42) |
| Literature/Schematics (2) | -- Original-techn. papers. |
