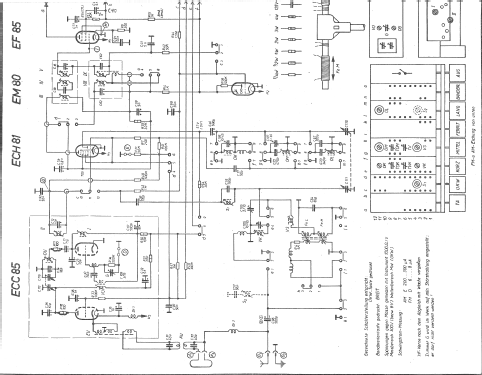

405/3D; Metz Transformatoren (ID = 12674) Radio

405/3D; Metz Transformatoren (ID = 12675) Radio

405/3D; Metz Transformatoren (ID = 12676) Radio

405/3D; Metz Transformatoren (ID = 1010241) Radio
405/3D; Metz Transformatoren (ID = 62188) Radio 405/3D; Metz Transformatoren (ID = 62189) Radio
405/3D; Metz Transformatoren (ID = 456770) Radio 405/3D; Metz Transformatoren (ID = 456771) Radio
405/3D; Metz Transformatoren (ID = 456772) Radio 405/3D; Metz Transformatoren (ID = 667106) Radio
405/3D; Metz Transformatoren (ID = 667107) Radio 405/3D; Metz Transformatoren (ID = 667108) Radio
405/3D; Metz Transformatoren (ID = 667109) Radio 405/3D; Metz Transformatoren (ID = 667111) Radio
Use red slider bar for more.
405/3D; Metz Transformatoren (ID = 62188) Radio
Metz Transformatoren: 405/3D [Radio] ID = 62188 667x500
Select picture or schematic to display from thumbnails on the right and click for download.
For model 405/3D, Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth

Country:  Germany
Manufacturer / Brand:  Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EF85 EABC80 EM80 EAF42 EL84 EL84
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 220, 240 Volt
Loudspeaker 4 Loudspeakers
Power out 12 W (unknown quality)
from Radiomuseum.org Model: 405/3D - Metz Transformatoren- und
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 660 x 390 x 300 mm / 26 x 15.4 x 11.8 inch
Notes drehbare Ferritantenne.
Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)
Price in first year of sale 419.00 DM
Collectors' prices
External source of data Erb
Source of data Rundfunk- und Fernseh-Katalog 1954/55
