• Country
• Germany

• Manufacturer / Brand
• Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth

• Year
• 1952–1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 19263

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• EF80 EC92 ECH81 EF85 EM34 EABC80 EF41 EL42 EL42

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 473/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

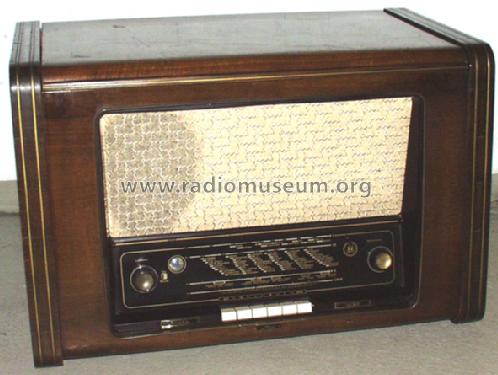

• Model: Phonosuper 502 [2 x EL42 ] - Metz Transformatoren- und

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 670 x 430 x 400 mm / 26.4 x 16.9 x 15.7 inch

• Notes

• Phono-Chassis = Dual 1002E.

  Siehe auch Metz Phonosuper 502W mit 1 x EL41 in der Endstufe.

• Net weight (2.2 lb = 1 kg)
• 15 kg / 33 lb 0.6 oz (33.04 lb)

• Price in first year of sale
• 598.00 DM

• External source of data
• Erb

• Source of data
• Kat.d.Rundf.GrossH.1953/54

• Literature/Schematics (1)
• -- Schematic
