- Country
- Austria
- Manufacturer / Brand
- Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
- Year
- 1939/1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 9804

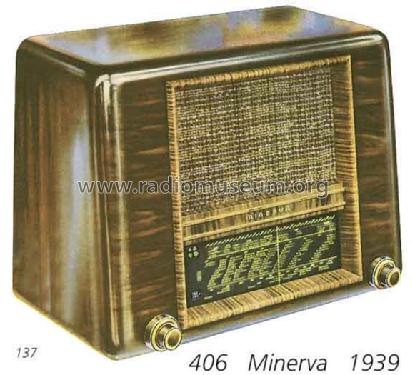

Prospekt "Die neue Linie" von Minerva
Aus original Händlerprospekt
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 483 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 110-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 406GW - Minerva-Radio Radiola-
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 570 x 425 x 290 mm / 22.4 x 16.7 x 11.4 inch
- Notes
- Variable Bandbreite.
- Net weight (2.2 lb = 1 kg)
- 13.9 kg / 30 lb 9.9 oz (30.617 lb)
- Price in first year of sale
- 318.00 RM
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Handbuch WDRG 1939 / Radiokatalog Band 2, Ernst Erb
- Circuit diagram reference
- Röhren in FS-Bestückungstabellen
- Picture reference
- Das Modell ist im «Radiokatalog» (Erb) abgebildet.
