Gloriette 598

Gloriette 598; Minerva-Radio (ID = 139256) Television

Gloriette 598; Minerva-Radio (ID = 139257) Television

Gloriette 598; Minerva-Radio (ID = 139258) Television

Gloriette 598; Minerva-Radio (ID = 139259) Television
Gloriette 598; Minerva-Radio (ID = 2179448) Television Gloriette 598; Minerva-Radio (ID = 2179449) Television
Gloriette 598; Minerva-Radio (ID = 2179450) Television Gloriette 598; Minerva-Radio (ID = 2179451) Television
Use red slider bar for more.
Gloriette 598; Minerva-Radio (ID = 2179448) Television
Minerva-Radio: Gloriette 598 [Television] ID = 2179448 1400x1181
Select picture or schematic to display from thumbnails on the right and click for download.
For model Gloriette 598, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien:

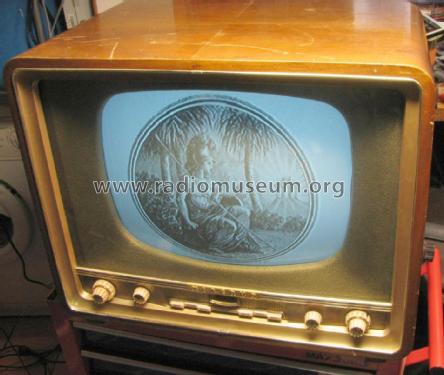

Front view, TV is in working state on original parts!

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1958 Category: Television Receiver (TV) or Monitor
Valves / Tubes 20: PCC88 PCF80 EF85 EF80 EM84 or PM84 PCL84 PCL82 ECH81 PL36 PY81 DY87 AW43-80
Semiconductors (the count is only for transistors) NTK
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage AC/DC-set / 220V; 240V Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Gloriette 598 - Minerva-Radio Radiola-
Material Wooden case
Shape Tablemodel with Push Buttons.
Notes

Magisches Auge: bis Chassisnr. 14650 EM84 mit Shuntwiderstand, anschliessend PM84. Röhren teilweise mehrfach. Empfangsbereich: VHF, Band I + III. UHF vorbereitet.

Price in first year of sale 6'380.00 ATS
Source of data Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
