Minervox 574W

Minervox 574W; Minerva-Radio (ID = 1163943) Radio

Minervox 574W; Minerva-Radio (ID = 1361251) Radio

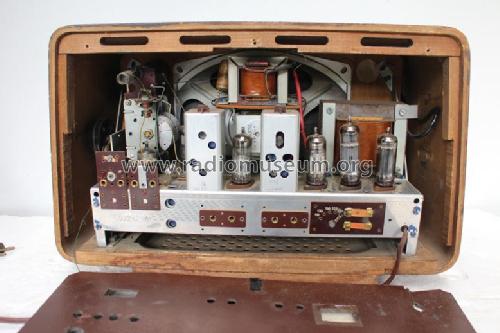

Minervox 574W; Minerva-Radio (ID = 119591) Radio Minervox 574W; Minerva-Radio (ID = 1724237) Radio
Minervox 574W; Minerva-Radio (ID = 119592) Radio Minervox 574W; Minerva-Radio (ID = 218986) Radio

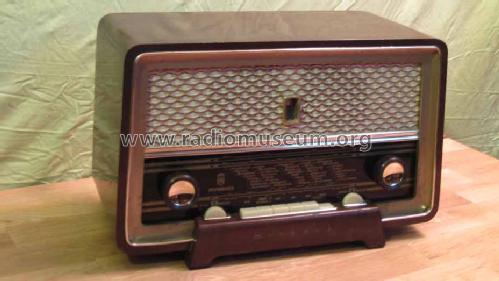

Minervox 574W; Minerva-Radio (ID = 1478140) Radio Minervox 574W; Minerva-Radio (ID = 1628300) Radio
Minervox 574W; Minerva-Radio (ID = 1628302) Radio Minervox 574W; Minerva-Radio (ID = 1724234) Radio
Minervox 574W; Minerva-Radio (ID = 1724236) Radio Minervox 574W; Minerva-Radio (ID = 218987) Radio
Use red slider bar for more.

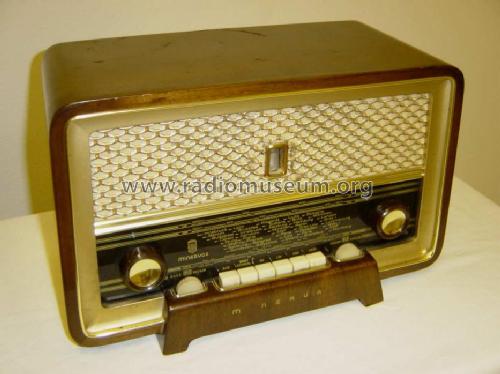

Minervox 574W; Minerva-Radio (ID = 119591) Radio
Minerva-Radio: Minervox 574W [Radio] ID = 119591 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Minervox 574W, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF85 EABC80 EM80 EL84 EZ80
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Minervox 574W - Minerva-Radio Radiola-
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 430 x 270 x 210 mm / 16.9 x 10.6 x 8.3 inch
Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)
Price in first year of sale 1'795.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Here you find 627 models, 557 with images and 443 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
