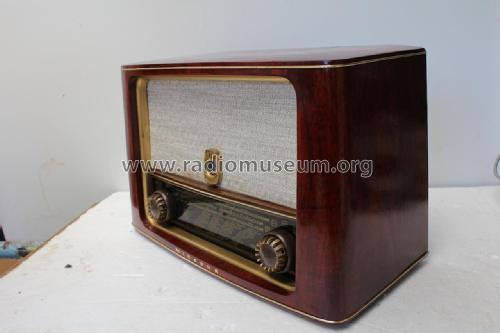

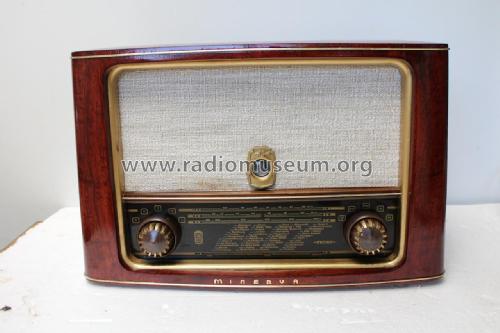

Minion 554W

Minion 554W; Minerva-Radio (ID = 37428) Radio

Minion 554W; Minerva-Radio (ID = 2039604) Radio
Minion 554W; Minerva-Radio (ID = 278536) Radio Minion 554W; Minerva-Radio (ID = 278537) Radio
Minion 554W; Minerva-Radio (ID = 278538) Radio Minion 554W; Minerva-Radio (ID = 1405512) Radio
Minion 554W; Minerva-Radio (ID = 1405514) Radio Minion 554W; Minerva-Radio (ID = 1405516) Radio
Minion 554W; Minerva-Radio (ID = 1777888) Radio Minion 554W; Minerva-Radio (ID = 1855785) Radio
Minion 554W; Minerva-Radio (ID = 1855786) Radio Minion 554W; Minerva-Radio (ID = 1855787) Radio
Use red slider bar for more.
Minion 554W; Minerva-Radio (ID = 278536) Radio
Minerva-Radio: Minion 554W [Radio] ID = 278536 512x350
Select picture or schematic to display from thumbnails on the right and click for download.
For model Minion 554W, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC81 ECH81 EF85 EABC80 EM34 EL84 EZ80
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: Minion 554W - Minerva-Radio Radiola-
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 470 x 300 x 230 mm / 18.5 x 11.8 x 9.1 inch
Notes

Minerva 4 Band 7-Röhren Vollsuper Model Minion 554W.
Fünfstufige Klangregelung
Kurzwellen (41 und 49m Bänder)
Nussholzgehäuse


Siehe auch:
Minerva Minion 554U (Allstromgerät, 1485,-- ATS)

Net weight (2.2 lb = 1 kg) 8.8 kg / 19 lb 6.1 oz (19.383 lb)
Price in first year of sale 1'550.00 ATS
External source of data E. Erb 3-907007-36-0

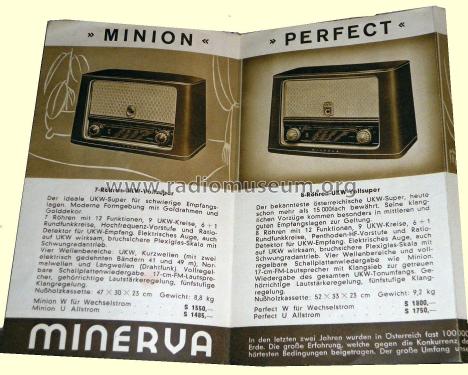

Source of data -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb


All listed radios etc. from Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Here you find 627 models, 557 with images and 443 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
