Minion 554U

Minion 554U; Minerva-Radio (ID = 206339) Radio

Minion 554U; Minerva-Radio (ID = 2035924) Radio
Minion 554U; Minerva-Radio (ID = 206145) Radio Minion 554U; Minerva-Radio (ID = 902556) Radio

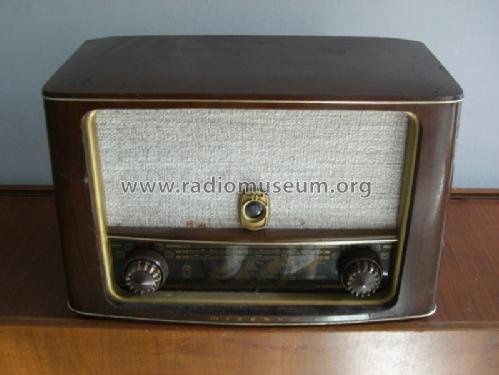

Minion 554U; Minerva-Radio (ID = 902557) Radio Minion 554U; Minerva-Radio (ID = 1715454) Radio
Minion 554U; Minerva-Radio (ID = 1777886) Radio
Use red slider bar for more.
Minion 554U; Minerva-Radio (ID = 206145) Radio
Minerva-Radio: Minion 554U [Radio] ID = 206145 675x474
Select picture or schematic to display from thumbnails on the right and click for download.
For model Minion 554U, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: UCC85 UCH81 UF85 UABC80 UM4 UL41 UY41
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage AC/DC-set / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: Minion 554U - Minerva-Radio Radiola-
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 470 x 300 x 230 mm / 18.5 x 11.8 x 9.1 inch
Notes

Minerva 4 Band 7-Röhren Allstrom-Vollsuper Model Minion 554U.
Fünfstufige Klangregelung
Kurzwellen (41 und 49m Bänder)
Nussholzgehäuse

Siehe auch:
Minerva Minion 554W (Wechselstromgerät, 1550,-- ATS)


Net weight (2.2 lb = 1 kg) 8.8 kg / 19 lb 6.1 oz (19.383 lb)
Price in first year of sale 1'485.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb
