Musikschrank Gloriette 600U

Musikschrank Gloriette 600U; Minerva-Radio (ID = 279069) Radio Musikschrank Gloriette 600U; Minerva-Radio (ID = 279070) Radio

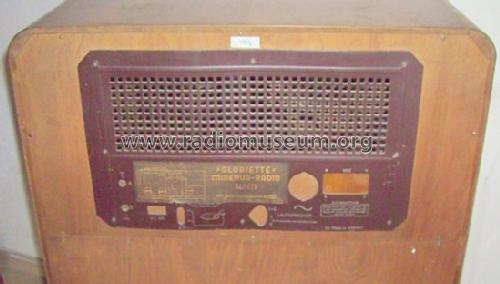

Musikschrank Gloriette 600U; Minerva-Radio (ID = 279071) Radio
Use red slider bar for more.
Musikschrank Gloriette 600U; Minerva-Radio (ID = 279069) Radio
Minerva-Radio: Musikschrank Gloriette 600U [Radio] ID = 279069 336x459
Select picture or schematic to display from thumbnails on the right and click for download.
For model Musikschrank Gloriette 600U, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1948/1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH11 EBF11 EF11 UBL1 UM4 UY1N
Main principle Superheterodyne (common); ZF/IF 483 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details Record Player (not changer)
Power type and voltage AC/DC-set / 100-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Musikschrank Gloriette 600U - Minerva-Radio Radiola-
Material Wooden case
Shape Console, Lowboy (legs < 50 %).

Model page created by Wolfgang Bauer. See "Data change" for further contributors.



All listed radios etc. from Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Here you find 627 models, 559 with images and 444 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
