• Country
• Italy

• Manufacturer / Brand
• Minerva (Ital-Minerva); Milano

• Year
• 1955/1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 115677

• • alternative name: Cozzi Luigi Dell'Aquila

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM80 EL84 EZ80

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

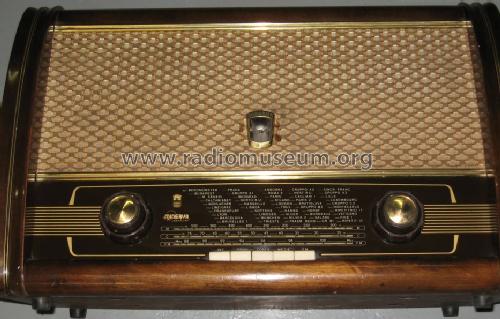

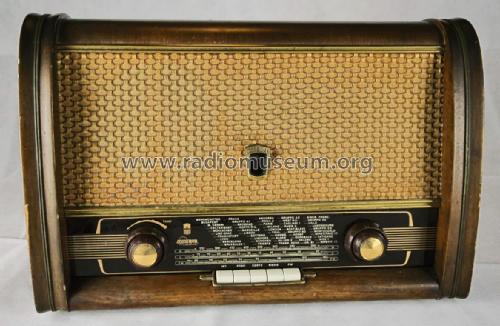

• Model: Spluga 556/10 - Minerva Ital-Minerva; Milano

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 510 x 340 x 210 mm / 20.1 x 13.4 x 8.3 inch

• Notes
• Serie ANIE MF.

• Source of data
• Guida Pratica Antique Radio (1) 1999

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
