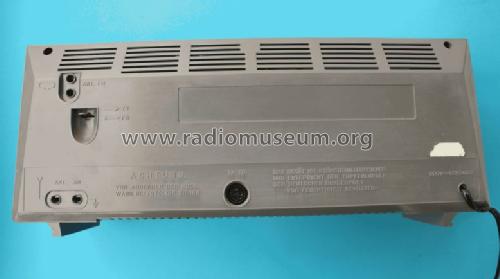

Audiphon ; Mivar VAR; Milano (ID = 1178731) Radio Audiphon ; Mivar VAR; Milano (ID = 1178732) Radio
Audiphon ; Mivar VAR; Milano (ID = 1178733) Radio Audiphon ; Mivar VAR; Milano (ID = 1178734) Radio
Audiphon ; Mivar VAR; Milano (ID = 1178735) Radio Audiphon ; Mivar VAR; Milano (ID = 1178856) Radio
Use red slider bar for more.
Audiphon ; Mivar VAR; Milano (ID = 1178731) Radio
Mivar VAR; Milano: Audiphon [Radio] ID = 1178731 730x378
Select picture or schematic to display from thumbnails on the right and click for download.
For model Audiphon, Mivar (VAR); Milano

Country:  Italy
Manufacturer / Brand:  Mivar (VAR); Milano
Year: 1966 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EF89 EABC80 EL84
Main principle Superheterodyne (common); ZF/IF 452/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 14 cm = 5.5 inch
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Audiphon - Mivar VAR; Milano
Material Plastics (no bakelite or catalin)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 430 x 185 x 125 mm / 16.9 x 7.3 x 4.9 inch
Notes Paralleltype zum Mivar Europa 3030.
