Egeo TV592/17

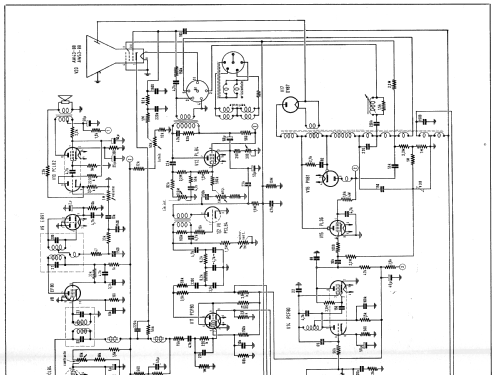

Egeo TV592/17; Mivar VAR; Milano (ID = 1101988) Television

Egeo TV592/17; Mivar VAR; Milano (ID = 1101990) Television
Egeo TV592/17; Mivar VAR; Milano (ID = 2566177) Television
Use red slider bar for more.
Egeo TV592/17; Mivar VAR; Milano (ID = 2566177) Television
Mivar VAR; Milano: Egeo TV592/17 [Television] ID = 2566177 1400x1866
Select picture or schematic to display from thumbnails on the right and click for download.
For model Egeo TV592/17, Mivar (VAR); Milano:
Cortesia di Mario Diani

Country:  Italy
Manufacturer / Brand:  Mivar (VAR); Milano
Year: 1959 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 20: EF80 EF80 EF80 EF80 EF80 PCF80 PCF80 PCF80 PY82 PY82 EB91 EB91 PCC88 PCL84 PCL82 PL36 PY81 DY87 PL81 AW43-88
Semiconductors (the count is only for transistors) OA91
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 110-280 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Egeo TV592/17 - Mivar VAR; Milano
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 470 x 385 x 335 mm / 18.5 x 15.2 x 13.2 inch
Notes

Probabilmente tra i primi televisori prodotti dalla Mivar: ha uno schermo di 17'' ed è molto simile al modello Jonio che monta uno schermo di 21''.

Source of data -- Original-techn. papers.

Model page created by Alessandro De Poi. See "Data change" for further contributors.
