• Country
• Germany

• Manufacturer / Brand
• Niemann & Co., Werner (Nicolette), Rundfunkwerk Sonata; Halle (Saale)

• Year
• 1953–1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 16006

• • Brand: Nicolette

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• EF85 EC92 ECH81 EF85 EM11 EABC80 EL11 or EL84 EZ12 or EZ80

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 8 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Details
• Record Player + Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 22 cm = 8.7 inch

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

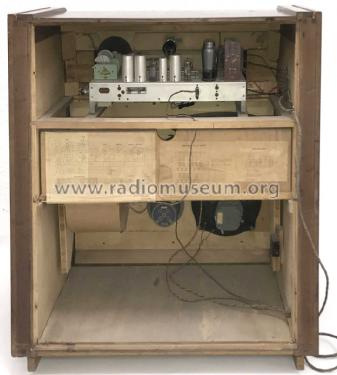

• Model: Händel 54WP - Niemann & Co., Werner

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 850 x 920 x 500 mm / 33.5 x 36.2 x 19.7 inch

• Notes
• [555309]. Radio Chassis = 54WU mit 2x MW und 3x KW. Tonbandgerät mit Plattenspieler je nach Baujahr MTG19, MTG20, oder MTG22b.
  22-cm-Tieftöner und 15-cm-Hochtöner, Plattenmagazin für 20 Platten.

• Net weight (2.2 lb = 1 kg)
• 60 kg / 132 lb 2.5 oz (132.159 lb)

• Price in first year of sale
• 1,934.00 DM

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Funkgeschichte der GFGF (Radio und Fernsehen 6/1956)

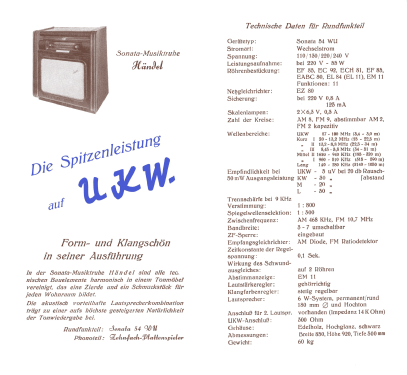

• Literature/Schematics (1)
• Jahresübersicht Radio und Fernsehen 1955
