Paganini GW18

Paganini GW18; Nora; Berlin (ID = 4355) Radio

Paganini GW18; Nora; Berlin (ID = 22269) Radio
Paganini GW18; Nora; Berlin (ID = 569) Radio Paganini GW18; Nora; Berlin (ID = 46419) Radio
Paganini GW18; Nora; Berlin (ID = 46422) Radio Paganini GW18; Nora; Berlin (ID = 46426) Radio
Paganini GW18; Nora; Berlin (ID = 1076680) Radio Paganini GW18; Nora; Berlin (ID = 1390289) Radio
Paganini GW18; Nora; Berlin (ID = 2029197) Radio
Use red slider bar for more.
Paganini GW18; Nora; Berlin (ID = 569) Radio

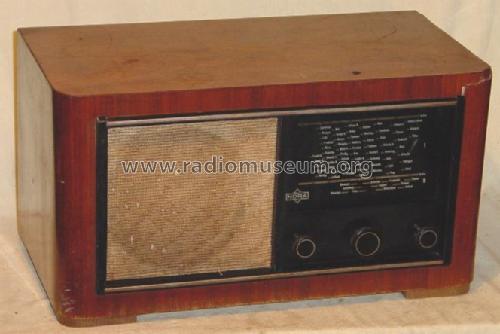

Nora; Berlin: Paganini GW18 [Radio] ID = 569 700x436

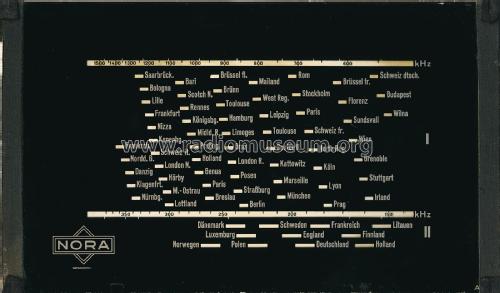

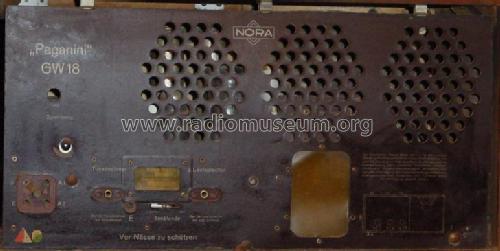

Select picture or schematic to display from thumbnails on the right and click for download.
For model Paganini GW18, Nora; Berlin

Country:  Germany
Manufacturer / Brand:  Nora; Berlin
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: VF7 VL4 optional AZ1 U3505
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110, 125, 220, 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Paganini GW18 - Nora; Berlin
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 520 x 290 x 280 mm / 20.5 x 11.4 x 11 inch
Net weight (2.2 lb = 1 kg) 11.5 kg / 25 lb 5.3 oz (25.33 lb)
Price in first year of sale 155.00 RM
Source of data Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in Fortschritte der Funktechnik und ihrer Grenzgebiete (8 Bände)
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet, das Copyright liegt beim Deutschen Rundfunk Museum (DRM), Berlin und beim Archiv-Verlag (AV). Sie finden eine grössere Abbildung und Schaltbild etc. bei der Loseblatt-Sammlung von DRM/AV.
