Ambassador Ch= L13/LL13; Nordmende, (ID = 2012006) Television
Nordmende,: Ambassador Ch= L13/LL13 [Television] ID = 2012006 933x1236
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ambassador Ch= L13/LL13, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen:

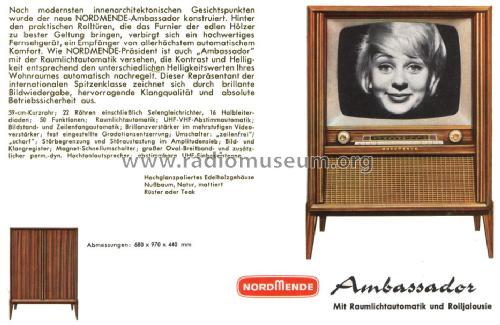

Q: Nordmende, Produkt-Katalog '62

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1962/1963 Category: Television Receiver (TV) or Monitor
Valves / Tubes 21: PCC88 PCF80 PC88 PC86 EF183 EF80 EF80 ECH83 PCL84 EF80 EF80 PCL86 PCF80 ECH83 ECC82 PCL82 PCF802 PL36 PY88 DY86 AW59-90
Main principle Superheterodyne (common); ZF/IF 38900 kHz
Wave bands Wave Bands given in the notes.
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Ambassador Ch= L13/LL13 - Nordmende, Norddeutsche Mende-
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 680 x 970 x 440 mm / 26.8 x 38.2 x 17.3 inch
Notes

VHF/UHF.
Technische Daten wie Präsident 13, jedoch Standgerät mit Jalousie-Schiebetüren.

Net weight (2.2 lb = 1 kg) 53.5 kg / 117 lb 13.5 oz (117.841 lb)
Price in first year of sale 1'538.00 DM
Source of data Handbuch VDRG 1962/1963
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
