For model Cabinet Ch= St13 /a /b /c /d, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen:
Q: Nordmende, Produkt-Katalog '62

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1962/1963 Category: Television Receiver (TV) or Monitor
Valves / Tubes 19: PCC88 PCF82 PC88 PC86 EF183 EF183 PCF80 PCL84 EF80 PCL86 ECH84 ECH84 ECC82 EAA91 PCL85 PL36 PY88 DY86 AW59-90
Main principle Superheterodyne (common); ZF/IF 38900 kHz
Wave bands Wave Bands given in the notes.
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Cabinet Ch= St13 /a /b /c /d - Nordmende, Norddeutsche Mende-
Material Wooden case

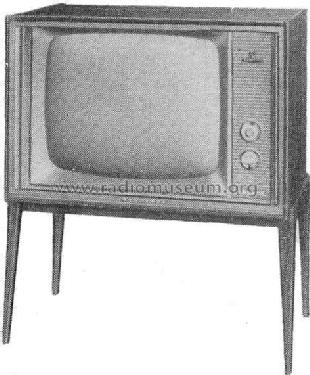

Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 755 x 860 x 450 mm / 29.7 x 33.9 x 17.7 inch
Notes VHF/UHF. Technische Daten wie Favorit (19 Rö.), jedoch Standgerät mit Untergestell und mit Jalousie-Schiebetüren.
Net weight (2.2 lb = 1 kg) 36.6 kg / 80 lb 9.9 oz (80.617 lb)
Price in first year of sale 1'225.00 DM
Source of data Handbuch VDRG 1962/1963

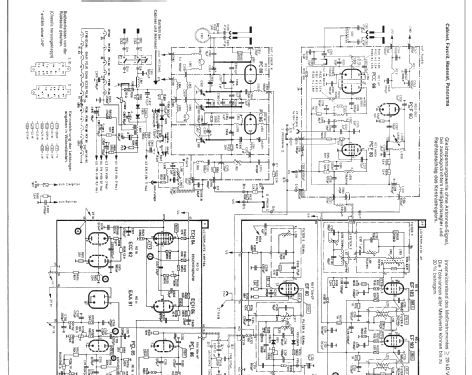

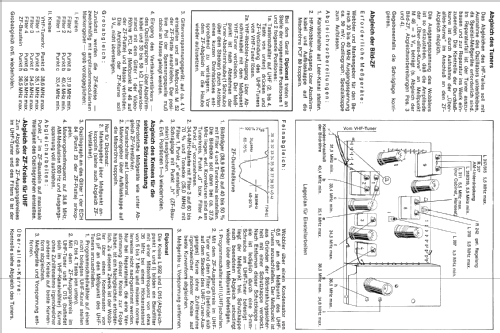

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
