• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1959/1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 218429

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• ECC85 ECH81 EF85 EABC80 EM84 ECC82 ECC83 EL84 EL84

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110 - 240 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

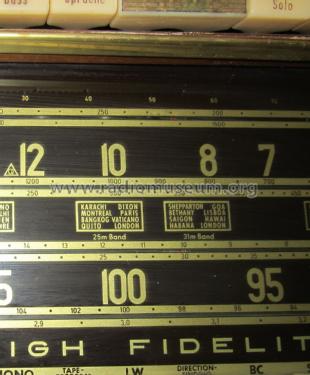

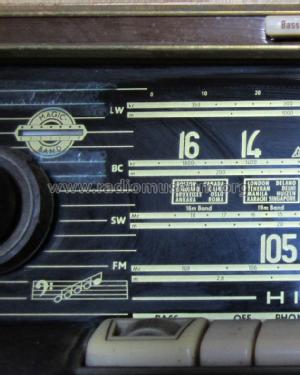

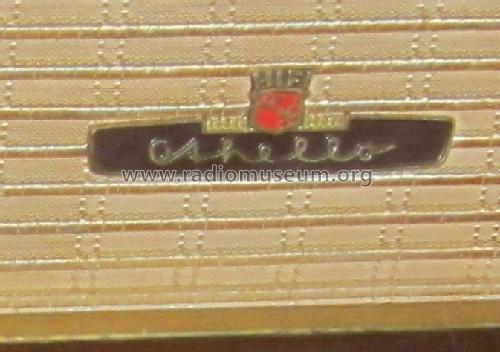

• Model: Othello High Fidelity U320 Ch= 0/632 [Export] - Nordmende, Norddeutsche Mende-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 660 x 380 x 270 mm / 26 x 15 x 10.6 inch

• Notes
• This is the export model of Nordmende Othello-Stereo with chassis 0/632 Stereo from 1959/1960.

• External source of data
• Guest Diane Hewitt, Fort Erie, Canada.

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
