• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1958/1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 21727

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 EL84

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110, 125, 150, 220, 240 Volt

• Loudspeaker
• 3 Loudspeakers

• Power out
• 5.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Rigoletto 59/3D Ch= 59/615 - Nordmende, Norddeutsche Mende-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 560 x 345 x 265 mm / 22 x 13.6 x 10.4 inch

• Notes

• Das ist die älterne Ausführung von Rigoletto 59. Siehe auch die neuere Ausführung. Unterschied: andere Anordnung des Kombi-Elkos und des Steckers zur Klangregelung.

• Net weight (2.2 lb = 1 kg)
• 10.6 kg / 23 lb 5.6 oz (23.348 lb)

• Price in first year of sale
• 308.00 DM

• External source of data
• Erb

• Source of data

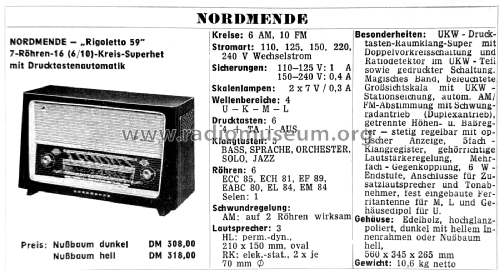

• HdB d.Rdf-& Ferns-GrH 1958/59

• Mentioned in
• -- Schematic

• Literature/Schematics (1)
• -- Original-techn. papers.
