• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1962 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 315609

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• ECC85 ECH81 EF85 EABC80 EM84 ECC83 ECC83 EL84 EL84

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; Export model

• Tuned circuits
• 8 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 120; 150; 220; 240 Volt

• Loudspeaker
• 6 Loudspeakers

• Power out
• 20 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

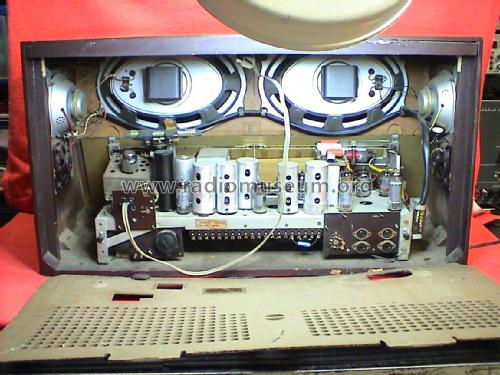

• Model: Tannhäuser Stereo C D338 - Nordmende, Norddeutsche Mende-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 650 x 370 x 285 mm / 25.6 x 14.6 x 11.2 inch

• Notes

• Export model for USA.  AM: 515-1650 kHz, FM: 88-108 MHz, SW 1: 8-24.5 MHz, SW2: 2.4-7.5 MHz

  See also the domestic model Nordmende Tannhäuser Stereo D330

• Net weight (2.2 lb = 1 kg)
• 47 lb 0 oz (47 lb) / 21.338 kg

• Author
• Model page created by Martin Steyer. See "Data change" for further contributors.
