Norelco FX824A/96

Norelco FX824A/96; North American (ID = 617830) Radio Norelco FX824A/96; North American (ID = 617833) Radio
Norelco FX824A/96; North American (ID = 617834) Radio Norelco FX824A/96; North American (ID = 617835) Radio
Norelco FX824A/96; North American (ID = 617847) Radio Norelco FX824A/96; North American (ID = 617848) Radio
Norelco FX824A/96; North American (ID = 617849) Radio Norelco FX824A/96; North American (ID = 617850) Radio
Norelco FX824A/96; North American (ID = 1126047) Radio Norelco FX824A/96; North American (ID = 1126048) Radio
Use red slider bar for more.
Norelco FX824A/96; North American (ID = 617830) Radio
North American: Norelco FX824A/96 [Radio] ID = 617830 513x376
Select picture or schematic to display from thumbnails on the right and click for download.
For model Norelco FX824A/96, North American Philips Co. Inc. (Norelco); Dobbs Ferry and New York, NY:

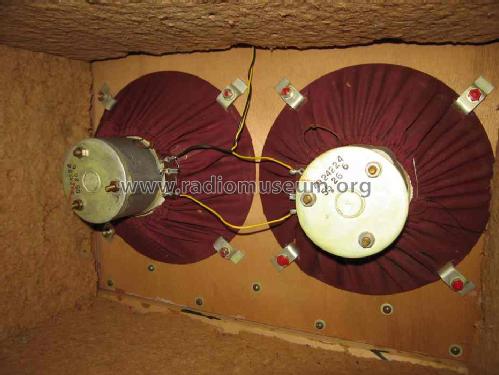

These photos were just a very few of the 170 photos taken to document thef recent restoration on Norelco FX824A/96 console for grandson of original purchaser Dr Charles Woodard. . .the record changer has been completely refurbished. Special thanks to RMOrg member John Hupse (Netherlands) for technical assistance and service data.

Country:  United States of America (USA)
Manufacturer / Brand:  North American Philips Co. Inc. (Norelco); Dobbs Ferry and New York, NY
Brand

Norelco
Year: 1953 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 15: EF80 EC92 EF80 ECH81 EM34 EF85 EBF80 EBF80 EQ80 EBC41 ECC40 EL84 EL84 AZ41 AZ41
schematic requested
Main principle Superhet with RF-stage; ZF/IF 452/10700 kHz; 3 AF stage(s)
Tuned circuits 9 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker 2 Loudspeakers / Ø 9 inch = 22.9 cm
Power out 10 W (unknown quality)
from Radiomuseum.org Model: Norelco FX824A/96 - North American Philips Co. Inc
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 1095 x 800 x 425 mm / 43.1 x 31.5 x 16.7 inch
Notes The Norelco FX824A/96 console has installed the Philips model AG1000-51 (record changer) with repeat button. Made in Holland for the North American Philips Inc. See also the European model FX824A/19.
Net weight (2.2 lb = 1 kg) 62.198 kg / 137 lb 0 oz (137 lb)
Source of data -- Original-techn. papers.

Model page created by Robert Sarbell. See "Data change" for further contributors.
