For model Aristona H43A, H43A -20, NSF (Nederlandsche Seintoestellen Fabriek); Leuven

Country:  Belgium
Manufacturer / Brand:  NSF (Nederlandsche Seintoestellen Fabriek); Leuven
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: AK2 AF3 ABC1 AL4 AZ1
Main principle Superheterodyne (common); ZF/IF 125 or 128 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 103-253 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: Aristona H43A, H43A -20 - NSF Nederlandsche
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 505 x 315 x 185 mm / 19.9 x 12.4 x 7.3 inch
Notes
3 Band reception:
  • LW: 720 - 2000 m.
  • BC: 198 - 585 m.
  • SW: 16,7 - 51 m.
Tuning scale light bulbs type: 8042 (4V, 500mA).
Loudspeaker Philips type 9656. Connectors for second loudspeaker and for pick-up.

This model is comparable with Mediator M43ZPhilips 461A, SFR_Radiola_RA43A, Philips_4-38A and Mullard X43A.

The technical manual mentions a variant -20 for the Belgian market having a different cabinet, backwall, tuning scale and has an I.F. of 128 kHz instead of 125 kHz. Since it is not known where this variant was produced (Eindhoven or Leuven), it is mentioned for both factories.

Net weight (2.2 lb = 1 kg) 9.850 kg / 21 lb 11.1 oz (21.696 lb)
Price in first year of sale 1'750.00 BEF
Mentioned in Radio Handboek 1940, G. van Cortenberghe

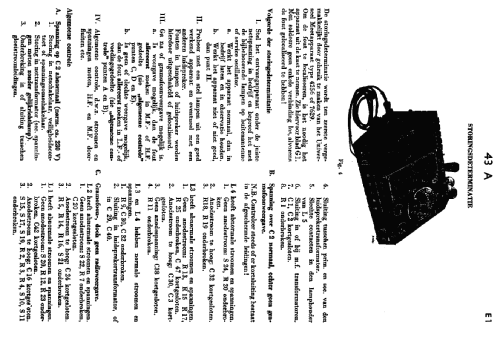

Literature/Schematics (1) -- Original-techn. papers. (Generic model 43A by Philips dated 1937)

Model page created by Gidi Verheijen. See "Data change" for further contributors.
