Opta 615GW

Opta 615GW; Loewe-Opta; (ID = 1118650) Radio Opta 615GW; Loewe-Opta; (ID = 1118651) Radio
Opta 615GW; Loewe-Opta; (ID = 1118652) Radio Opta 615GW; Loewe-Opta; (ID = 895532) Radio
Opta 615GW; Loewe-Opta; (ID = 895530) Radio Opta 615GW; Loewe-Opta; (ID = 895528) Radio
Opta 615GW; Loewe-Opta; (ID = 895529) Radio
Use red slider bar for more.
Opta 615GW; Loewe-Opta; (ID = 1118650) Radio
Loewe-Opta;: Opta 615GW [Radio] ID = 1118650 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Opta 615GW, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1943/1944 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH21 UCH21 UBL21 UY1N
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 125; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Opta 615GW - Loewe-Opta; Deutschland
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 250 x 170 x 130 mm / 9.8 x 6.7 x 5.1 inch
Notes

Ch= Philips 208U. Sogenanntes Verlagerungsgerät (Gehäuseform alt, 1943/1944), gefertigt von Philips - Eindhoven (NL).

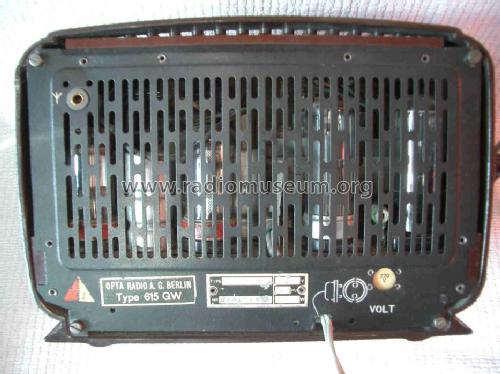

Der alte Gehäuseform aus 1943/1944 trägt noch das Löwe-Opta-Logo aus der Periode 1941-1942. Der Rückwand erwähnt aber Opta Radio A.G. (siehe Firmengeschichte).

Siehe auch Modell Opta 624GW in neuem Gehäuse (1944/1945).

Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Mentioned in Funkgeschichte der GFGF (Nr. 234, 235, 236 (2017))

Model page created by Aglef Tröger. See "Data change" for further contributors.
