Munkácsy 53 T 816

Munkácsy 53 T 816; Videoton; (ID = 203776) Television

Munkácsy 53 T 816; Videoton; (ID = 203777) Television

Munkácsy 53 T 816; Videoton; (ID = 203774) Television

Munkácsy 53 T 816; Videoton; (ID = 203775) Television
Munkácsy 53 T 816; Videoton; (ID = 641320) Television Munkácsy 53 T 816; Videoton; (ID = 641322) Television
Munkácsy 53 T 816; Videoton; (ID = 641321) Television Munkácsy 53 T 816; Videoton; (ID = 641319) Television
Munkácsy 53 T 816; Videoton; (ID = 641323) Television Munkácsy 53 T 816; Videoton; (ID = 641325) Television
Munkácsy 53 T 816; Videoton; (ID = 2231717) Television Munkácsy 53 T 816; Videoton; (ID = 2609370) Television
Use red slider bar for more.
Munkácsy 53 T 816; Videoton; (ID = 641320) Television
Videoton;: Munkácsy 53 T 816 [Television] ID = 641320 724x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Munkácsy 53 T 816, Videoton; Székesfehérvár:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1960/1961 Category: Television Receiver (TV) or Monitor
Valves / Tubes 19: PCC88 PCF82 EF80 PCL82 ECH81 PABC80 PL82 PL36 PY83 EY86 PY82 AW53-80
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker 2 Loudspeakers
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Munkácsy 53 T 816 - Videoton; Székesfehérvár
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 600 x 580 x 470 mm / 23.6 x 22.8 x 18.5 inch
Notes 53cm TV with VHF I/III Tuner made for GDR & Poland Export in Version CCIR B, some tubes are more than one times.
Net weight (2.2 lb = 1 kg) 36 kg / 79 lb 4.7 oz (79.295 lb)
Price in first year of sale 5'900.00 HUF

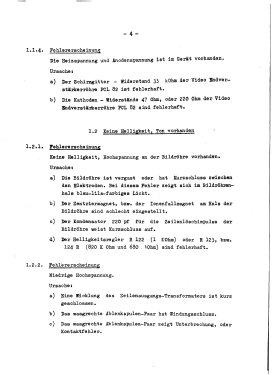

Literature/Schematics (1) -- Original-techn. papers.
Literature/Schematics (4) Villamossági tömegcikkek árjegyzéke, Bp. 1961

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Videoton; Székesfehérvár
Here you find 677 models, 632 with images and 176 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
