Pacsirta (Lerche) AR612 eckiges Gehäuse

Pacsirta AR612; Orion; Budapest (ID = 578067) Radio

Pacsirta AR612; Orion; Budapest (ID = 578068) Radio
Pacsirta AR612; Orion; Budapest (ID = 392953) Radio Pacsirta AR612; Orion; Budapest (ID = 471044) Radio
Pacsirta AR612; Orion; Budapest (ID = 471043) Radio Pacsirta AR612; Orion; Budapest (ID = 471042) Radio
Pacsirta AR612; Orion; Budapest (ID = 1497737) Radio Pacsirta AR612; Orion; Budapest (ID = 1502648) Radio
Pacsirta AR612; Orion; Budapest (ID = 1664992) Radio Pacsirta AR612; Orion; Budapest (ID = 1664993) Radio
Pacsirta AR612; Orion; Budapest (ID = 1664994) Radio Pacsirta AR612; Orion; Budapest (ID = 2608483) Radio
Use red slider bar for more.
Pacsirta AR612; Orion; Budapest (ID = 392953) Radio
Orion; Budapest: Pacsirta AR612 [Radio] ID = 392953 933x570
Select picture or schematic to display from thumbnails on the right and click for download.
For model Pacsirta (Lerche) AR612 eckiges Gehäuse, Orion; Budapest:

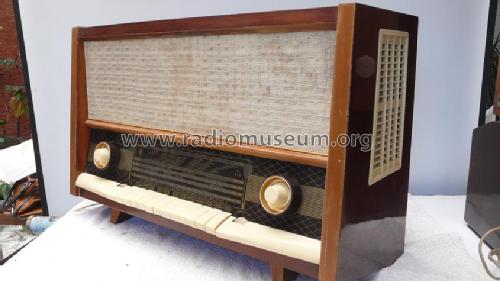

An Orion AR612 AM/FM 7 valve radio c. 1962. To be restored.

Country:  Hungary
Manufacturer / Brand:  Orion; Budapest
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EBF89 ECC83 EM80 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 473,6/10700 kHz
Tuned circuits 7 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220: 240 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Pacsirta AR612 [eckiges Gehäuse] - Orion; Budapest
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 680 x 420 x 280 mm / 26.8 x 16.5 x 11 inch
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Price in first year of sale 2'800.00 HUF
Source of data -- Collector info (Sammler)

Model page created by Wolfgang Bauer. See "Data change" for further contributors.



All listed radios etc. from Orion; Budapest
Here you find 999 models, 855 with images and 383 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Orion; Budapest: Pacsirta AR612
Threads: 1 | Posts: 1
Hits: 1384     Replies: 0
orion: AR612 (AR 612); Reparaturtipp Tastenaggregat
Wolfgang Bauer
29.Aug.08
  1


Reparaturtipp Tastenaggregat ==> siehe Beitrag

MfG. WB.
