AR 702 F

AR 702 F; Orion; Budapest (ID = 1512464) Radio

AR 702 F; Orion; Budapest (ID = 1512465) Radio

AR 702 F; Orion; Budapest (ID = 1717511) Radio

AR 702 F; Orion; Budapest (ID = 1717512) Radio
AR 702 F; Orion; Budapest (ID = 518433) Radio AR 702 F; Orion; Budapest (ID = 1470186) Radio
AR 702 F; Orion; Budapest (ID = 1470187) Radio AR 702 F; Orion; Budapest (ID = 1470188) Radio
AR 702 F; Orion; Budapest (ID = 1470189) Radio AR 702 F; Orion; Budapest (ID = 1470190) Radio
AR 702 F; Orion; Budapest (ID = 1470191) Radio AR 702 F; Orion; Budapest (ID = 1470192) Radio
AR 702 F; Orion; Budapest (ID = 1526270) Radio
Use red slider bar for more.
AR 702 F; Orion; Budapest (ID = 518433) Radio

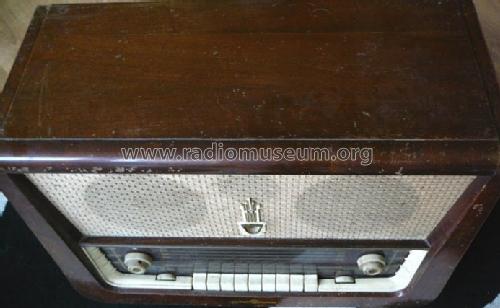

Orion; Budapest: AR 702 F [Radio] ID = 518433 600x479
Select picture or schematic to display from thumbnails on the right and click for download.
For model AR 702 F, Orion; Budapest:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Hungary
Manufacturer / Brand:  Orion; Budapest
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 ECH81 EBF80 EM80 EABC80 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 473/10700 kHz
Tuned circuits 8 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
Loudspeaker 3 Loudspeakers / Ø 20 cm = 7.9 inch
Power out 4 W (unknown quality)
from Radiomuseum.org Model: AR 702 F - Orion; Budapest
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 650 x 450 x 300 mm / 25.6 x 17.7 x 11.8 inch
Notes With rotatable ferrite antenna.
Net weight (2.2 lb = 1 kg) 25 kg / 55 lb 1.1 oz (55.066 lb)
Literature/Schematics (1) Radio es Televizio Vevö keszülekek, 1956-57

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
