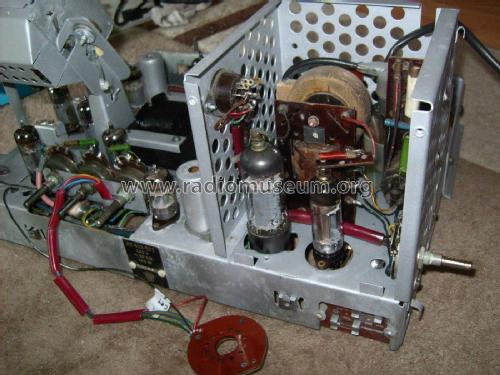

AT-403-522; Orion; Budapest (ID = 2184999) Television AT-403-522; Orion; Budapest (ID = 2185000) Television
AT-403-522; Orion; Budapest (ID = 2185001) Television AT-403-522; Orion; Budapest (ID = 2185002) Television
Use red slider bar for more.
AT-403-522; Orion; Budapest (ID = 2184986) Television
Orion; Budapest: AT-403-522 [Television] ID = 2184986 1400x1203
Select picture or schematic to display from thumbnails on the right and click for download.
For model AT-403-522, Orion; Budapest:
Thanks for the photos, Mr.Tamás Kovács!

Country:  Hungary
Manufacturer / Brand:  Orion; Budapest
Year: 1960 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 15: PCC84 PCF82 EF80 EF80 EF80 PCL84 ECH81 EH81 PCL82 PCL82 ECC82 PL36 PY83 DY86 AW43-80
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: AT-403-522 - Orion; Budapest
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 545 x 460 x 510 mm / 21.5 x 18.1 x 20.1 inch
Notes

Screen: 43 cm.

43 cm s/w TV mit 12 Kanal Trommelkanalwähler, VHF-Bereiche.

Net weight (2.2 lb = 1 kg) 26 kg / 57 lb 4.3 oz (57.269 lb)
Price in first year of sale 5'200.00 HUF

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
