E23W

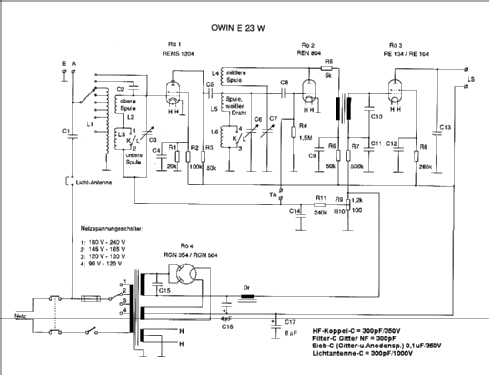

E23W; Owin; Hannover (ID = 239544) Radio
E23W; Owin; Hannover (ID = 71439) Radio E23W; Owin; Hannover (ID = 71440) Radio
E23W; Owin; Hannover (ID = 25236) Radio E23W; Owin; Hannover (ID = 25238) Radio
E23W; Owin; Hannover (ID = 25237) Radio E23W; Owin; Hannover (ID = 56692) Radio
E23W; Owin; Hannover (ID = 1784629) Radio
Use red slider bar for more.
E23W; Owin; Hannover (ID = 71439) Radio
Owin; Hannover: E23W [Radio] ID = 71439 644x482
Select picture or schematic to display from thumbnails on the right and click for download.
For model E23W, Owin; Hannover

Country:  Germany
Manufacturer / Brand:  Owin; Hannover
Year: 1930/1931 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: RENS1204 REN804 RE134 or RES164 RGN354 or RGN504
Main principle TRF with regeneration; 1 Special; 1 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 90 - 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: E23W - Owin; Hannover
Material Wooden case
Shape Tablemodel, low profile (big size).
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Röhren in FS-Bestückungstabellen
Mentioned in Funkgeschichte der GFGF (9391)
