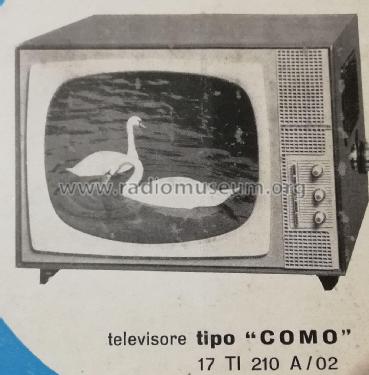

17TI210A /02
Use red slider bar for more.
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1962 ?? | Category: Television Receiver (TV) or Monitor | ||||
| Valves / Tubes | 21: PCC88 PCF80 6AF4A PCF80 EF80 EF80 PCF80 PCF80 ECH81 PCF80 PL36 PY81 DY87 PL84 ECC85 EF80 EF80 PCL82 PY82 PY82 unknown_CRT | ||||
|---|---|---|---|---|---|
| Semiconductors (the count is only for transistors) | 1N82A OA70 OA72 OA81 |
| Main principle | Superhet with RF-stage; 2 AF stage(s) |
|---|---|
| Wave bands | VHF incl. FM and/or UHF (see notes for details) |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 127; 145; 160; 220 Volt |
| Loudspeaker | 2 Loudspeakers |
| Power out | |
| from Radiomuseum.org | Model: 17TI210A /02 - Philips Italy; Milano MI |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Notes | Philips S.p.A. 17TI210A /02 TV B/N 17"
|
| Literature/Schematics (1) | -- Schematic (Esquemario TV REDE, Tomo II, 1964) |
Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
