• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1957/1958

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 240551

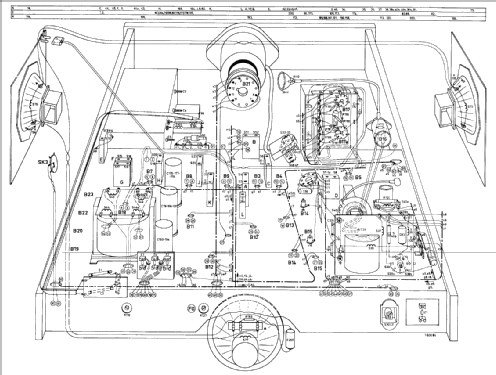

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 24

• Valves / Tubes
• PCC88 PCF80 PCF80 PCF80 PCF80 UF80 EF80 EF80 EF80 PL83 ECH81 PCF80 PCF80 PL36 PY81 DY87 PL84 PL84 PCL82 UY85 UY85 UY85 UY85 AW53-80

• Main principle
• Superheterodyne (common); 2 AF stage(s); Export model

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: 21CX152A /04 - Philips; Eindhoven tubes

• Shape
• Console with any shape - in general

• Notes
• • Transformerless audio output stage.
  • VHF channels: (tuner A3 768 24): E2-E11. CCIR norm only.
  • No UHF.
  • Type of loudspeakers: 1 x AD3800BM, 1 x 9758B, 1 x 49-242-85.
  • Contains  semiconductor diodes: 1 x OA70, 6 x OA81.
