21TA143A /00 Ch= C2

21TA143A /00 Ch= C2; Philips - Österreich (ID = 204947) Television

21TA143A /00 Ch= C2; Philips - Österreich (ID = 204948) Television

21TA143A /00 Ch= C2; Philips - Österreich (ID = 249343) Television

21TA143A /00 Ch= C2; Philips - Österreich (ID = 947251) Television

21TA143A /00 Ch= C2; Philips - Österreich (ID = 947253) Television

21TA143A /00 Ch= C2; Philips - Österreich (ID = 204943) Television

21TA143A /00 Ch= C2; Philips - Österreich (ID = 1964780) Television
21TA143A /00 Ch= C2; Philips - Österreich (ID = 141919) Television
Use red slider bar for more.
21TA143A /00 Ch= C2; Philips - Österreich (ID = 141919) Television
Philips - Österreich: 21TA143A /00 Ch= C2 [Television] ID = 141919 656x592

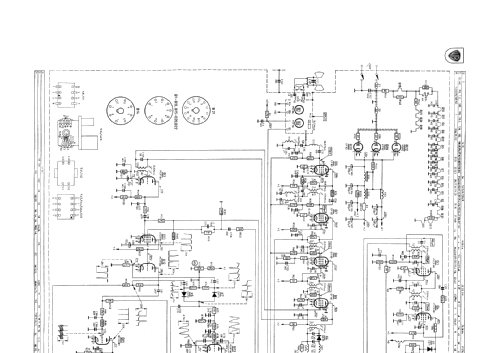

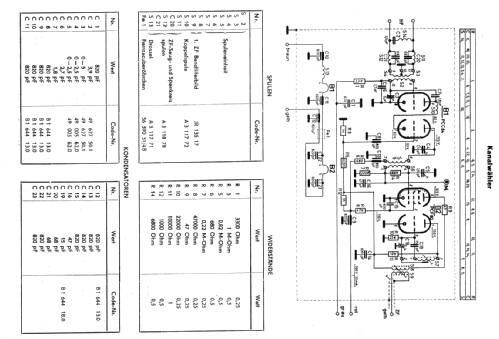

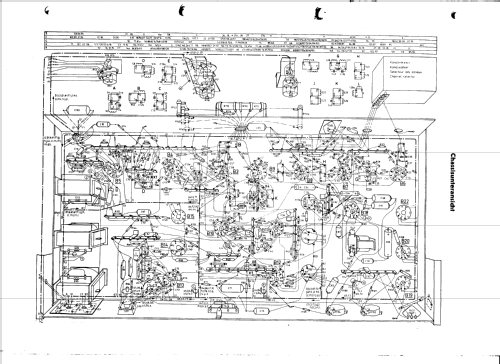

Select picture or schematic to display from thumbnails on the right and click for download.
For model 21TA143A /00 Ch= C2, Philips - Österreich

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1956 Category: Television Receiver (TV) or Monitor
Valves / Tubes 21: PCC84 PCF80 EF80 EF80 EF80 EF80 PL83 PCF80 PCF80 PCL82 PCF80 ECH81 PCL82 PCF80 PL36 PY81 DY86 UY82 UY82 UY82 MW53-80
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: 21TA143A /00 Ch= C2 - Philips - Österreich
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 650 x 620 x 580 mm / 25.6 x 24.4 x 22.8 inch
Notes Fernsehbereich VHF Band I+III. Bildschirmgröße 48 × 38 cm.
Price in first year of sale 10'500.00 öS
Source of data -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.



All listed radios etc. from Philips - Österreich
Here you find 1056 models, 991 with images and 847 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
