Philips - Österreich: 21TA210U /00 Ch= S4/00 [Television] ID = 136456 617x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model 21TA210U /00 Ch= S4/00, Philips - Österreich

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1958/1959 Category: Television Receiver (TV) or Monitor
Valves / Tubes 19: PCC88 PCF80 EF80 EF80 EF80 PCL84 EF80 EF80 PCL82 PCF80 ECH81 PCF80 PCL82 PL81 PY81 DY87 PY82 PY82 AW53-80
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 21TA210U /00 Ch= S4/00 - Philips - Österreich
Material Wooden case
Shape Tablemodel with Push Buttons.
Notes

Empfangsbereich: Band I + III, Kanal 2a - 4, 5 - 12.
Parallelgerät zum Horny WT2118U/00.

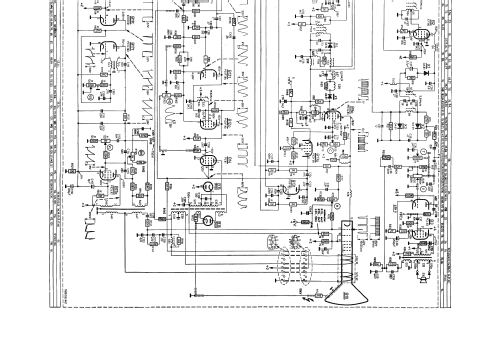

2 Ausführungen siehe Schaltpläne;
für Geräte mit Nr. 31501 - 32500 und 33501 - 37000 geänderte Schaltung der Videoendstufe.

Source of data Radiokatalog Band 2, Ernst Erb

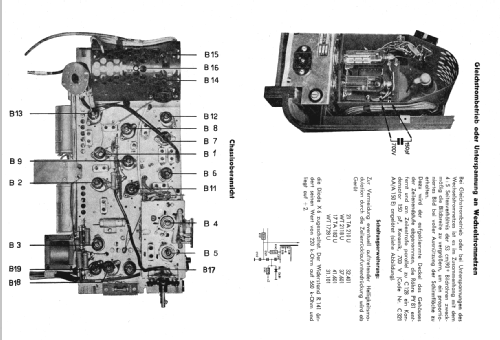

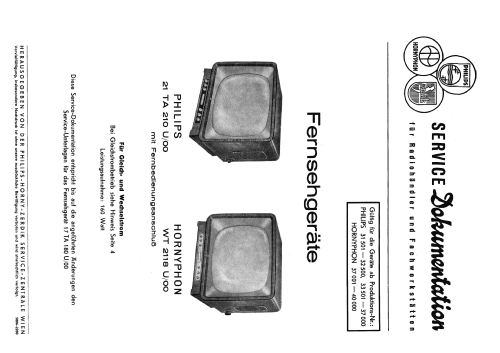

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
