- Country
- Finland
- Manufacturer / Brand
- Philips Finland - see also Fenno and TeRate
- Year
- 1960
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 190862
Philips advertisement

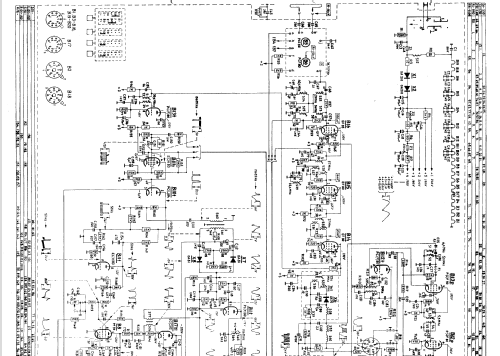

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 20
- Valves / Tubes
- PCF80 PCL82 PL84 PCC88 PCF80 PCL82 PF86 PCF80 PCL84 ECH83 PCF80 PCF80 EF80 EF80 EF85 ECC82 PL36 PY81 DY87 AW53-88
- Main principle
- Superheterodyne (common)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 21TSF250A - Philips Finland - see also
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 560 x 490 x 390 mm / 22 x 19.3 x 15.4 inch
- Notes

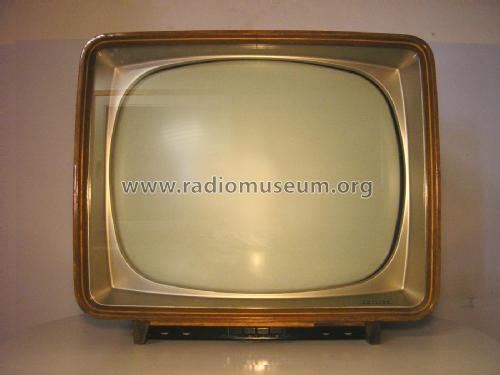

- 21 inch B/W television.
- Source of data
- -- Original prospect or advert
- Author
- Model page created by Jouko Laukkanen. See "Data change" for further contributors.
