• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1960 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 204654

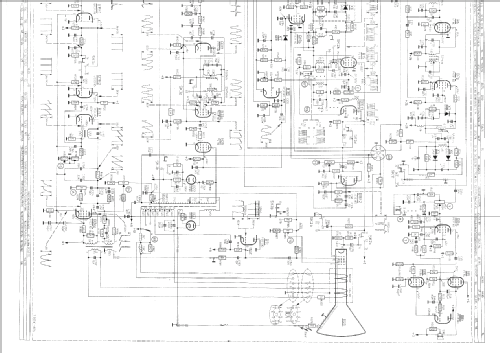

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 25

• Valves / Tubes
• PCC88 PCF80 UF80 UF80 UF80 UF80 PCF80 PCF80 PL84 PL84 UF80 UF80 UF80 UF80 PL83 UCC85 PCF80 PCF80 UCC85 PCF80 PL36 PY81 DY87 PCL82 AW53-80

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 21TX220A /66 - Philips; Eindhoven tubes

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 610 x 520 x 510 mm / 24 x 20.5 x 20.1 inch

• Notes
• • Transformerless audio output stage.
  • 4 standard receiver: (manual switching)
    • European 625 lines; FM sound; negative video sync.
    • Belgian 625 lines; AM sound; positive video sync.
    • Belgian 819 lines; AM sound; positive video sync.
    • French 819 lines; AM sound; positive video sync.
  • Type of loudspeakers: 1 x AD3800AM.
  • VHF channels: E2-E4; E6-E11; F8+8a; F12.
  • No UHF.

• Source of data
• -- Original-techn. papers.

• Literature/Schematics (1)

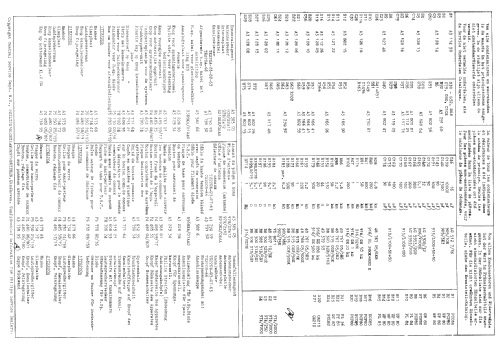

• Service Manual

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
