For model 4212A /16, Philips; Eindhoven (tubes international!); Miniwatt:

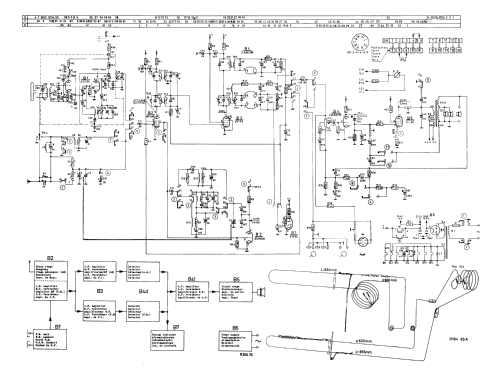

From service documentation

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1963 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF85 EABC80 EM80 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 145; 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: 4212A /16 - Philips; Eindhoven tubes
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 550 x 232 x 212 mm / 21.7 x 9.1 x 8.3 inch
Notes

2 speakers AD3500M (5 ohms).

Tuning ranges:
FM 87.5 - 104 MHz
SW 5.9 - 18.2 MHz
MW 517 - 1620 kHz
LW 150 - 400 kHz

This model was (also?) sold as Mediator MD4212A /16, Aristona SA4212A and perhaps under other brand names.

See also Philips 4212A /00 /01.

Mentioned in -- Original-techn. papers.

Model page created by Mark Hippenstiel. See "Data change" for further contributors.
