423HU/17
Use red slider bar for more.

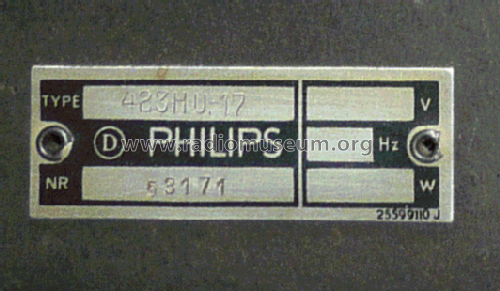

Philips Radio A/S; K: 423HU/17 [Radio] ID = 444974 609x700
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1936 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: CK1 CF3 CB2 CL4 CY1 C1 |
|---|
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast (MW) and Long Wave. |
| Details | |
| Power type and voltage | AC/DC-set / 220 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch |
| Power out | |
| from Radiomuseum.org | Model: 423HU/17 - Philips Radio A/S; København |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 440 x 380 x 300 mm / 17.3 x 15 x 11.8 inch |
| Notes | Gehäuse oben abgeschrägt mit herausklappbarer Skala. |
| Net weight (2.2 lb = 1 kg) | 21.5 kg / 47 lb 5.7 oz (47.357 lb) |
| Source of data | - - Data from my own collection |
Model page created by Detlef Kraus. See "Data change" for further contributors.
