HSF454A

HSF454A; Philips Finland - (ID = 1171289) Radio HSF454A; Philips Finland - (ID = 2177341) Radio
Use red slider bar for more.

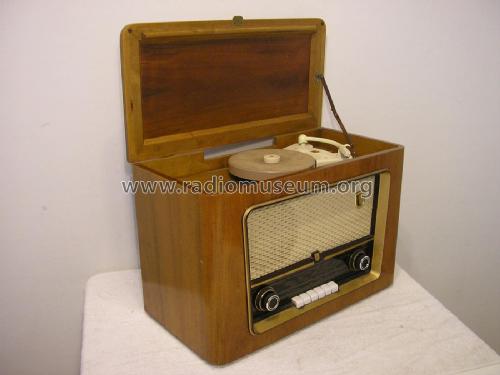

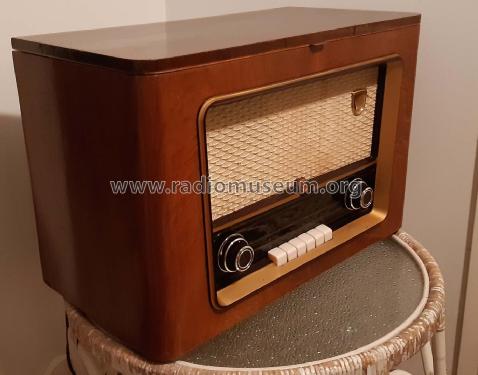

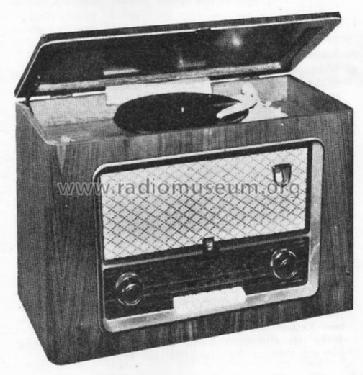

HSF454A; Philips Finland - (ID = 1171289) Radio
Philips Finland -: HSF454A [Radio] ID = 1171289 505x521
Select picture or schematic to display from thumbnails on the right and click for download.
For model HSF454A, Philips Finland - see also Fenno and TeRate:
Radio 3/1956

Country:  Finland
Manufacturer / Brand:  Philips Finland - see also Fenno and TeRate
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EBF80 EF85 EM80 EABC80 EL84 EZ80
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.

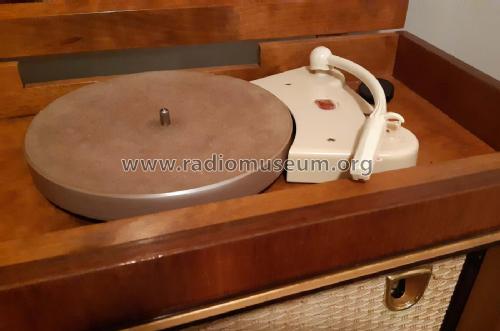

Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 127; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
Power out
from Radiomuseum.org Model: HSF454A - Philips Finland - see also
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 580 x 380 x 300 mm / 22.8 x 15 x 11.8 inch
Price in first year of sale 46'500.00 FIM

Model page created by Timo Rantasaari. See "Data change" for further contributors.



All listed radios etc. from Philips Finland - see also Fenno and TeRate
Here you find 159 models, 149 with images and 38 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
