Nautilus 535U
Use red slider bar for more.
Philips Ibérica,: Nautilus 535U [Radio] ID = 115457 330x400

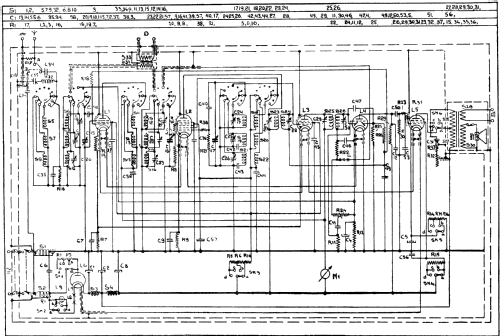

Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1935/1936 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 6: CF3 CK1 CF3 CBC1 CL2 CY1 C1 |
|---|
| Main principle | Superhet with RF-stage; ZF/IF 115 kHz; 2 AF stage(s) |
|---|---|
| Tuned circuits | 7 AM circuit(s) |
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |
| Power type and voltage | AC/DC-set / 110-250 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: Nautilus 535U - Philips Ibérica, COPRESA, |
| Material | Wooden case |
| Shape | Tablemodel, high profile (upright - NOT Cathedral nor decorative). |
| Price in first year of sale | 1'025.00 Pesetas |
| Mentioned in | Campaña Renovación - cuadro de reemplazos 1955 |
| Literature/Schematics (1) | -- Original-techn. papers. |
| Literature/Schematics (2) | -- Original prospect or advert (Philips 1936) |
Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
