Aachen-Super D53 (D 53 AU)

Philips Radios - Deutschland

  • Year
  • 1937/1938
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 7299
    • Brand: Deutsche Philips-Ges.

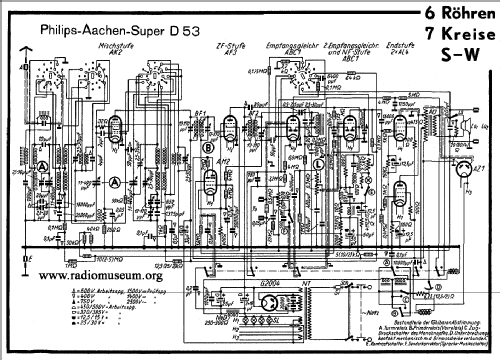

Click on the schematic thumbnail to request the schematic as a free document.

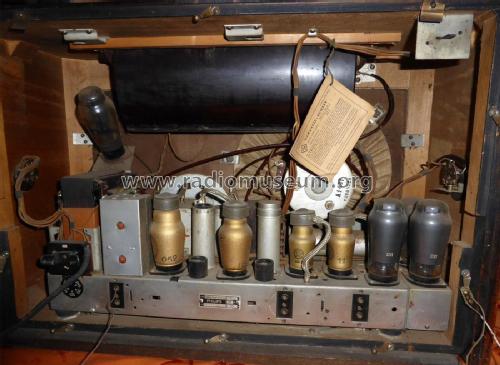

 Technical Specifications

  • Number of Tubes
  • 9
  • Main principle
  • Superheterodyne (common); ZF/IF 128 kHz
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Aachen-Super D53 - Philips Radios - Deutschland
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 610 x 400 x 255 mm / 24 x 15.7 x 10 inch
  • Notes
  • "Monoknopf" Bedienung für Abstimmung und schaltbare "fühlbare Scharfabstimmung" sowie Lautstärke, Bandbreite und Wellenbereiche

    Einbau Wechselrichter 7880C  für 110 - 145 Volt bzw. 7881C für 200 - 245 Volt möglich.
    Deshalb kann das Gerät dann an Gleichstrom betrieben werden;
    AU. (A= Wechselstrom, U= Universal= Allstrom).

    Siehe auch das tschechoslowakische Modell Philips Allegro 890A -14, die schweizer Version Cantata 890A und die holländische Ausführung Concerto 890A (Cantata und Concerto mit roten Röhren an Stelle der A-Serie).

  • Net weight (2.2 lb = 1 kg)
  • 20 kg / 44 lb 0.8 oz (44.053 lb)
  • Price in first year of sale
  • 480.00 RM
  • Circuit diagram reference
  • Lange+Schenk+FS-Röhrenbestückung

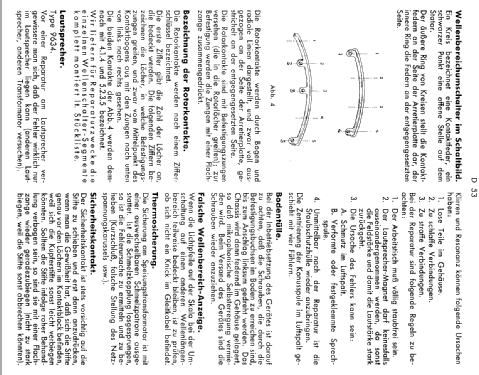

  • Literature/Schematics (1)
  • -- Original-techn. papers.

 Collections | Museums | Literature

Collections

The model Aachen-Super is part of the collections of the following members.

 Forum

Forum contributions about this model: Philips Radios -: Aachen-Super D53

Threads: 3 | Posts: 13

Hello

This is the radio that has the silent tuning option that uses a brake operation when a station is found; audio then being restored.  Philips called this Auto mode which it isnt really.

All I need to know is how this is selected on the Monoknob?  I believe there to be a lever, which operates a switch wafer, by Bowden cable, and a sprung push button. The switch is first operated and then the push button depressed in my thinking and not having the radio.

 Is this correct?

A picture of this would be really useful.

thanks Gary Tempest

Gary Tempest, 01.Mar.18

Weitere Posts (9) zu diesem Thema.

Hello

I am interested in this model and trying to understand the operation of the circuit in Auto mode.

Some progress has been made but several parts I do not understand.  Has anyone got the Service Manaul containing a description of the circuit  and the Items list, particularly coil resistances, please?

I only need these parts as I have the schematic and have also re-drawn it for my own use.

thanks for any help   Gary

Gary Tempest, 05.Feb.18

Weitere Posts (3) zu diesem Thema.

Zur Funktionsweise der fühlbaren Scharfabstimmung siehe "Technische Unterlagen" des 890A "Allegro" unter model_id=23182.

Frank Blöhbaum, 25.Jan.05
