Aachen-Super D55-AU Ch = D52

Aachen-Super D55-AU Ch = D52; Philips Radios - (ID = 241633) Radio Aachen-Super D55-AU Ch = D52; Philips Radios - (ID = 241639) Radio
Aachen-Super D55-AU Ch = D52; Philips Radios - (ID = 241640) Radio Aachen-Super D55-AU Ch = D52; Philips Radios - (ID = 241641) Radio
Aachen-Super D55-AU Ch = D52; Philips Radios - (ID = 1957085) Radio Aachen-Super D55-AU Ch = D52; Philips Radios - (ID = 1957086) Radio
Aachen-Super D55-AU Ch = D52; Philips Radios - (ID = 1957087) Radio
Use red slider bar for more.
Aachen-Super D55-AU Ch = D52; Philips Radios - (ID = 241633) Radio

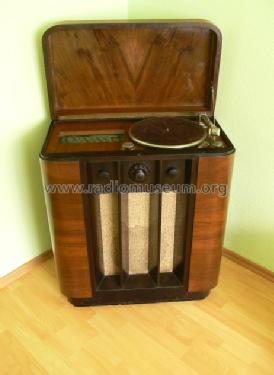

Philips Radios -: Aachen-Super D55-AU Ch = D52 [Radio] ID = 241633 464x633
Select picture or schematic to display from thumbnails on the right and click for download.
For model Aachen-Super D55-AU Ch = D52, Philips Radios - Deutschland

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: AK2 AF3 AB2 ABC1 AM2 AL4 AZ1
Main principle Superheterodyne (common); ZF/IF 128 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details Record Player (not changer)
Power type and voltage Other, details in remarks or not known. / 110-245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Aachen-Super D55-AU Ch = D52 - Philips Radios - Deutschland
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 800 x 700 x 390 mm / 31.5 x 27.6 x 15.4 inch
Notes

Variable Bandbreite.
Werksseitig mit Wechselrichter 7880C  für 110 - 145 Volt bzw. 7881C für 200 - 245 Volt im Untergehäuse ausgestattet.
Für Gleich- oder Wechselspannungsbetrieb umsteckbare Adapterbuchse,
AU. (A= Wechselstrom, U= Universal= Allstrom).

Source of data - - Data from my own collection

Model page created by Detlef Boeder. See "Data change" for further contributors.
