B4E14A; Philips Ibérica, (ID = 244734) Radio
Philips Ibérica,: B4E14A [Radio] ID = 244734 933x622
Select picture or schematic to display from thumbnails on the right and click for download.
For model B4E14A, Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona:
Vista delantera

Country:  Spain
Manufacturer / Brand:  Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona
Year: 1961 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM84 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 470/10700 kHz
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: B4E14A - Philips Ibérica, COPRESA,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 415 x 235 x 160 mm / 16.3 x 9.3 x 6.3 inch
Notes

Utiliza módulo de FM tipo ZB A3 418 12

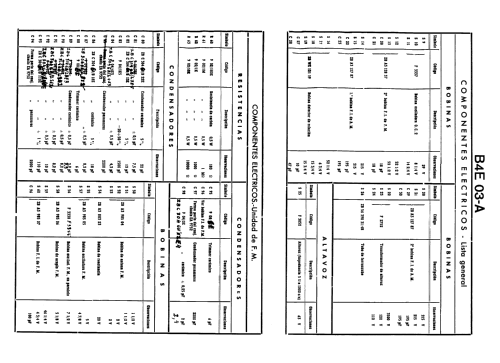

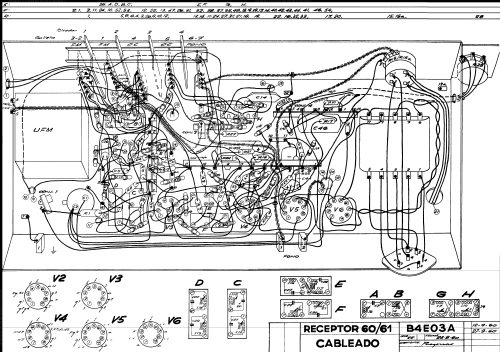

Subida nota de Servicio Philips indicando que se siga el manual del B4E03A

Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Juan Antonio Pardo-Alonso. See "Data change" for further contributors.
