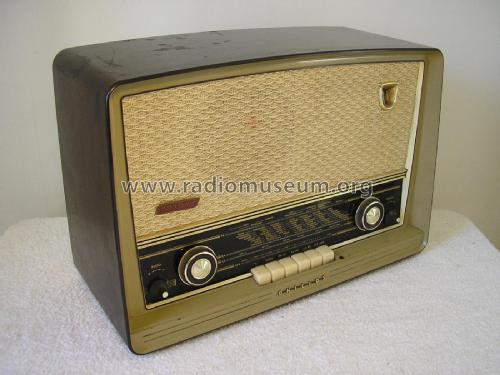

Novosonic B4SF72A

Novosonic B4SF72A; Philips Finland - (ID = 1116209) Radio

Novosonic B4SF72A; Philips Finland - (ID = 1116212) Radio

Novosonic B4SF72A; Philips Finland - (ID = 1116216) Radio

Novosonic B4SF72A; Philips Finland - (ID = 1116220) Radio
Novosonic B4SF72A; Philips Finland - (ID = 211281) Radio Novosonic B4SF72A; Philips Finland - (ID = 211284) Radio
Novosonic B4SF72A; Philips Finland - (ID = 211287) Radio Novosonic B4SF72A; Philips Finland - (ID = 211288) Radio
Novosonic B4SF72A; Philips Finland - (ID = 211289) Radio Novosonic B4SF72A; Philips Finland - (ID = 482336) Radio
Novosonic B4SF72A; Philips Finland - (ID = 810599) Radio Novosonic B4SF72A; Philips Finland - (ID = 810990) Radio
Novosonic B4SF72A; Philips Finland - (ID = 941625) Radio Novosonic B4SF72A; Philips Finland - (ID = 941626) Radio
Use red slider bar for more.
Novosonic B4SF72A; Philips Finland - (ID = 211281) Radio
Philips Finland -: Novosonic B4SF72A [Radio] ID = 211281 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Novosonic B4SF72A, Philips Finland - see also Fenno and TeRate

Country:  Finland
Manufacturer / Brand:  Philips Finland - see also Fenno and TeRate
Year: 1957 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EF89 EF85 EM80 EABC80 EL84 EZ80
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)     6 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 127; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 14 cm = 5.5 inch
Power out
from Radiomuseum.org Model: Novosonic B4SF72A - Philips Finland - see also
Material Bakelite case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 500 x 340 x 210 mm / 19.7 x 13.4 x 8.3 inch
Net weight (2.2 lb = 1 kg) 9.7 kg / 21 lb 5.9 oz (21.366 lb)
Source of data - - Data from my own collection

Model page created by Thomas Günzel. See "Data change" for further contributors.



All listed radios etc. from Philips Finland - see also Fenno and TeRate
Here you find 140 models, 130 with images and 24 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
