B4SF81A

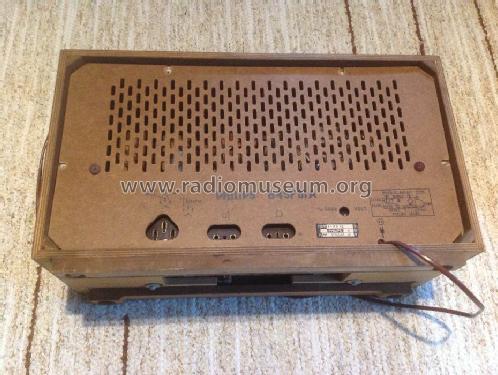

B4SF81A; Philips Finland - (ID = 1514320) Radio B4SF81A; Philips Finland - (ID = 1514321) Radio
B4SF81A; Philips Finland - (ID = 1514319) Radio B4SF81A; Philips Finland - (ID = 1514322) Radio
B4SF81A; Philips Finland - (ID = 1952557) Radio B4SF81A; Philips Finland - (ID = 1952558) Radio
B4SF81A; Philips Finland - (ID = 1952559) Radio B4SF81A; Philips Finland - (ID = 1952560) Radio
B4SF81A; Philips Finland - (ID = 1952561) Radio B4SF81A; Philips Finland - (ID = 1952563) Radio
Use red slider bar for more.
B4SF81A; Philips Finland - (ID = 1514320) Radio
Philips Finland -: B4SF81A [Radio] ID = 1514320 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model B4SF81A, Philips Finland - see also Fenno and TeRate

Country:  Finland
Manufacturer / Brand:  Philips Finland - see also Fenno and TeRate
Year: 1957/1958 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM80 EL84 EZ80
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 127; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: B4SF81A - Philips Finland - see also
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 475 x 275 x 190 mm / 18.7 x 10.8 x 7.5 inch
Notes

B4SF81A has input for a recordplayer and output for an external speaker.

Net weight (2.2 lb = 1 kg) 7.4 kg / 16 lb 4.8 oz (16.3 lb)

Model page created by Jari Aalto. See "Data change" for further contributors.
