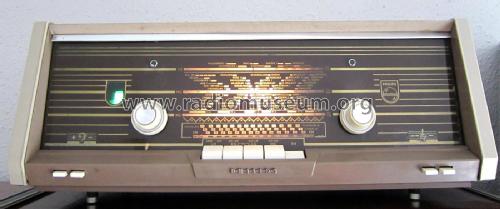

B4X02A /19; Philips Belgium (ID = 1292965) Radio
Philips Belgium: B4X02A /19 [Radio] ID = 1292965 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model B4X02A /19, Philips Belgium (Belgien)

Country:  Belgium
Manufacturer / Brand:  Philips Belgium (Belgien)
Year: 1961 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF85 EABC80 EM80 EL84 EZ80
Main principle Super-Heterodyne (Super in general); ZF/IF 468/10700 kHz; Export model
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 145; 165; 220; 245 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: B4X02A /19 - Philips Belgium Belgien
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 550 x 225 x 203 mm / 21.7 x 8.9 x 8 inch
Notes Export model for Scandinavia.
Dial lamp: 8024 N.71
Collectors' prices

Model page created by Timo Rantasaari. See "Data change" for further contributors.
