B4X23A /01

B4X23A /01; Philips Belgium (ID = 2431419) Radio B4X23A /01; Philips Belgium (ID = 2431420) Radio
B4X23A /01; Philips Belgium (ID = 2431421) Radio B4X23A /01; Philips Belgium (ID = 2431422) Radio

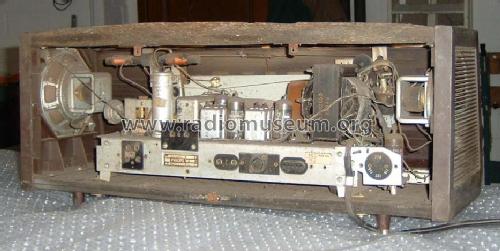

B4X23A /01; Philips Belgium (ID = 36470) Radio B4X23A /01; Philips Belgium (ID = 36472) Radio
Use red slider bar for more.

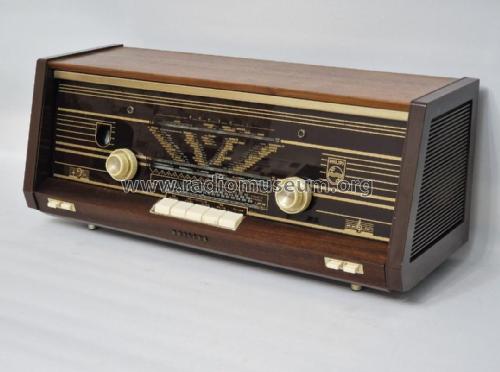

B4X23A /01; Philips Belgium (ID = 2431419) Radio
Philips Belgium: B4X23A /01 [Radio] ID = 2431419 700x329
Select picture or schematic to display from thumbnails on the right and click for download.
For model B4X23A /01, Philips Belgium (Belgien):
Catawiki _29522269

Country:  Belgium
Manufacturer / Brand:  Philips Belgium (Belgien)
Year: 1962/1963 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF85 EABC80 EM80 EL84 EZ80
Main principle Super-Heterodyne (Super in general); ZF/IF 452/10700 kHz; 2 AF stage(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 145; 220 Volt
Loudspeaker 2 Loudspeakers / Ø 12 cm = 4.7 inch
Power out
from Radiomuseum.org Model: B4X23A /01 - Philips Belgium Belgien
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 550 x 230 x 210 mm / 21.7 x 9.1 x 8.3 inch

Model page created by Gidi Verheijen. See "Data change" for further contributors.



All listed radios etc. from Philips Belgium (Belgien)
Here you find 326 models, 304 with images and 163 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
