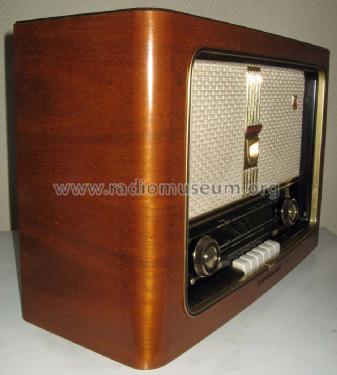

B5SF62A; Philips Finland - (ID = 1736712) Radio
Philips Finland -: B5SF62A [Radio] ID = 1736712 1400x1102
Select picture or schematic to display from thumbnails on the right and click for download.
For model B5SF62A, Philips Finland - see also Fenno and TeRate:
Receiving local FM broadcast with internal antenna. Good sound. Replaced EM80 tuning eye tube and dial lamps.

Country:  Finland
Manufacturer / Brand:  Philips Finland - see also Fenno and TeRate
Year: 1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EF85 EF89 EM80 EABC80 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     6 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 127; 220; 245 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: B5SF62A - Philips Finland - see also
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 582 x 394 x 222 mm / 22.9 x 15.5 x 8.7 inch
Notes Second loudspeaker Ø = 105 mm.
Price in first year of sale 35'500.00 FIM

Model page created by Eero Ukkola. See "Data change" for further contributors.
