B5X82A /05

B5X82A /05; Philips Belgium (ID = 1616774) Radio B5X82A /05; Philips Belgium (ID = 497061) Radio
B5X82A /05; Philips Belgium (ID = 497064) Radio B5X82A /05; Philips Belgium (ID = 497063) Radio
B5X82A /05; Philips Belgium (ID = 497062) Radio B5X82A /05; Philips Belgium (ID = 497066) Radio
B5X82A /05; Philips Belgium (ID = 497069) Radio B5X82A /05; Philips Belgium (ID = 1186031) Radio
B5X82A /05; Philips Belgium (ID = 1289866) Radio B5X82A /05; Philips Belgium (ID = 1289867) Radio
Use red slider bar for more.

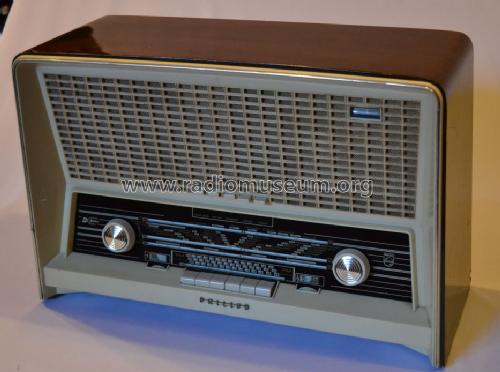

B5X82A /05; Philips Belgium (ID = 1616774) Radio
Philips Belgium: B5X82A /05 [Radio] ID = 1616774 933x696
Select picture or schematic to display from thumbnails on the right and click for download.
For model B5X82A /05, Philips Belgium (Belgien)

Country:  Belgium
Manufacturer / Brand:  Philips Belgium (Belgien)
Year: 1958/1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: ECC85 ECH81 EF89 EF85 EM84 EABC80 EL84 EL86 EZ80
Main principle Super-Heterodyne (Super in general); ZF/IF 452/10700 kHz; 2 AF stage(s); Export model
Tuned circuits 6 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 145; 165; 220; 245 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: B5X82A /05 - Philips Belgium Belgien
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 540 x 345 x 210 mm / 21.3 x 13.6 x 8.3 inch
Notes

'Radio Distribution' input (selected by push button on the front panel, above the glass station dial).

AM radio with built-in ferroceptor.
FM radio with dipole antenna input.
Amplifier: SRPP1 type.

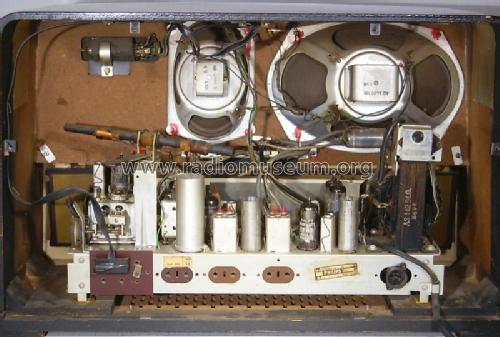

2 oval loudspeakers:
  • AD3690AM (800 Ohm).
  • AD2460A (800 Ohm).
Dial lamps: 8024N (6.3V / 300mA, bajonet).

1shunt regulated push-pull amplifier
Net weight (2.2 lb = 1 kg) 8.5 kg / 18 lb 11.6 oz (18.722 lb)
Collectors' prices

Model page created by Peter Spies. See "Data change" for further contributors.
