B5X88A

B5X88A; Philips Belgium (ID = 1953967) Radio

B5X88A; Philips Belgium (ID = 1953968) Radio

B5X88A; Philips Belgium (ID = 1953962) Radio

B5X88A; Philips Belgium (ID = 1953963) Radio

B5X88A; Philips Belgium (ID = 1953964) Radio

B5X88A; Philips Belgium (ID = 1953965) Radio

B5X88A; Philips Belgium (ID = 1953966) Radio

B5X88A; Philips Belgium (ID = 1953969) Radio

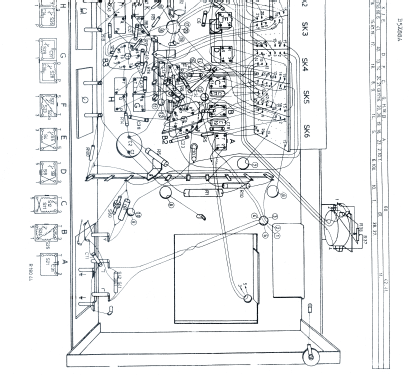

B5X88A; Philips Belgium (ID = 1953970) Radio

B5X88A; Philips Belgium (ID = 1954169) Radio
B5X88A; Philips Belgium (ID = 1953734) Radio B5X88A; Philips Belgium (ID = 1953735) Radio
B5X88A; Philips Belgium (ID = 1953736) Radio B5X88A; Philips Belgium (ID = 1953737) Radio
B5X88A; Philips Belgium (ID = 1953738) Radio
Use red slider bar for more.
B5X88A; Philips Belgium (ID = 1953734) Radio
Philips Belgium: B5X88A [Radio] ID = 1953734 1400x956
Select picture or schematic to display from thumbnails on the right and click for download.
For model B5X88A, Philips Belgium (Belgien)

Country:  Belgium
Manufacturer / Brand:  Philips Belgium (Belgien)
Year: 1958 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: ECC85 ECH81 EF89 EF85 EM84 EABC80 EL84 EL86 EZ80
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 90; 110; 127; 145; 190; 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: B5X88A - Philips Belgium Belgien
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 540 x 338 x 211 mm / 21.3 x 13.3 x 8.3 inch
Net weight (2.2 lb = 1 kg) 9.4 kg / 20 lb 11.3 oz (20.705 lb)

Model page created by José Manuel Silvestre. See "Data change" for further contributors.



All listed radios etc. from Philips Belgium (Belgien)
Here you find 323 models, 300 with images and 161 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Philips Belgium: B5X88A
Threads: 1 | Posts: 3
Hits: 370     Replies: 2
philips: Philips piano button problem
Vincent Cappuccitti
01.Apr.19
  1

Does anyone have experience repairing piano buttons on a Philips radio? I am repairing a B5X88A radio that has a problem with the off button not operating correctly. The previous owner installed an on/off switch on the chord which works fine. However I prefer to have the button working properly.

The mechanism does not move the connections unless manually pulled or pushed with pliers. I have taken off the end cover exposing the contacts and wonder if it is missing a spring. Are there any drawings or pictures that I could refer to?

Regards

Heinrich Stummer
01.Apr.19
  2

Hello, the button lever and the contact rod are linked together with a torsion spring.(I've seen on a B5X43 type) This springs are hard to find. You have to figure out the missing part of the aparatus. I'm sorry I have no photo of a similar piano assembly yet.

Best regards

Heinrich



Vincent Cappuccitti
02.Apr.19
  3

Heinrich, I have tried to attach two pictures of the mechanism that I'm referring to. It's not the main shaft and torsion spring. It is located within the piano button enclosure. The pictures were taken with the end cover removed.

I don't know for sure  if it's a spring that is missing but there is something not working correctly because the two plates slide across each other without having any effect on each other.

They should move the mains contacts to OFF and ON positions. I can make a spring if needed as long as I know how it should be connected.

Much appreciated.

Vince


Philips Belgium: B5X88A
End of forum contributions about this model
